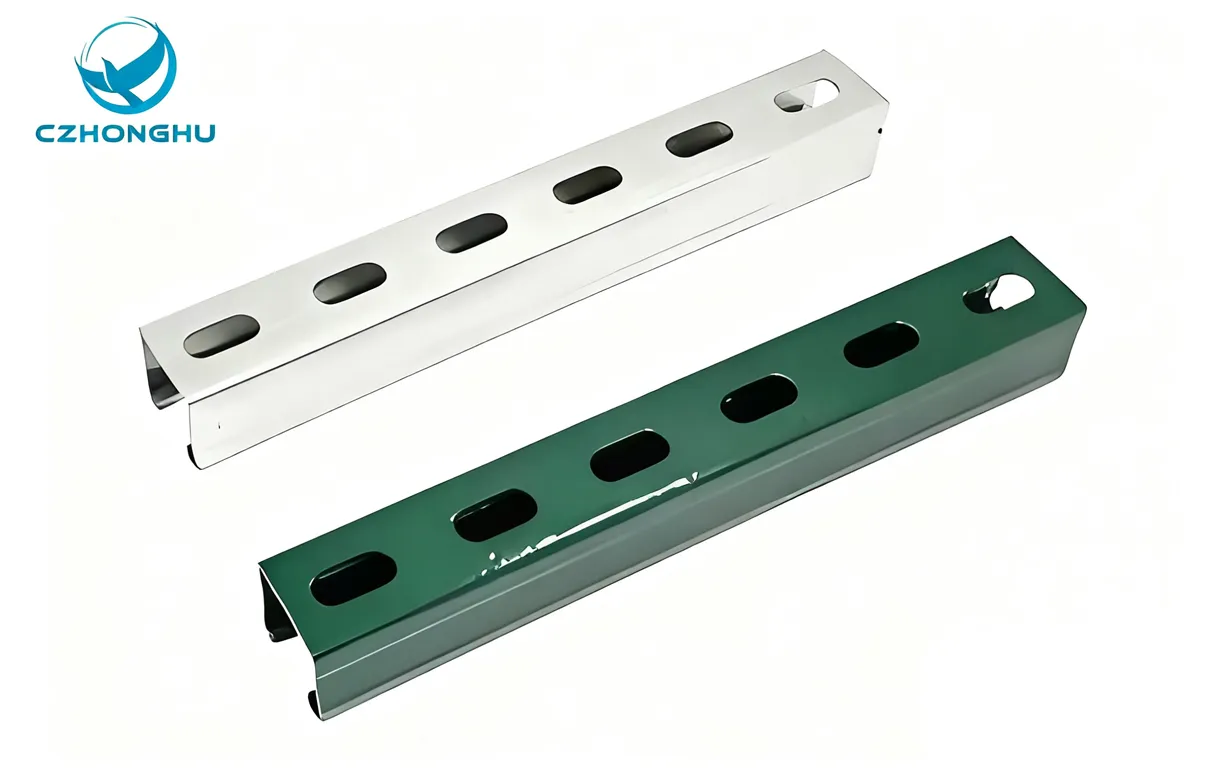

Aluminum strut channel is a lightweight, corrosion-resistant metal profile with a u-shaped design and slotted holes for adjustable connections. Its primary function is to construct modular support frameworks for electrical systems, mechanical pipes, and data cabling in commercial and industrial settings.
The key advantage of this system is its natural resistance to rust and its high strength-to-weight ratio. This makes an aluminum strut channel ideal for environments where weight is a concern or where corrosion is a risk, such as in chemical plants or outdoor applications. Components are easily attached along the slots using specialized nuts and bolts, allowing for flexible assembly without welding.
| Item | P/N | Length | Size WXH | Thickness | Material | Finishes Option | Weight | Standard Pack |
| aluminum strut channel | HHAL41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 1.0 mm | AL6005-T5 | AL6005-T5 | 1.1KG | 50pc/bundle |
| HHAL41315 | 1.5 mm | 1.6KG | 50pc/bundle | |||||
| HHAL41320 | 2.0 mm | 2.2KG | 50pc/bundle | |||||
| HHAL41325 | 2.5 mm | 2.8KG | 50pc/bundle | |||||
| HHAL41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 1.0 mm | AL6005-T5 | AL6005-T5 | 2.2KG | 50pc/bundle | |
| HHAL41615 | 1.5 mm | 3.3KG | 50pc/bundle | |||||
| HHAL41620 | 2.0 mm | 4.4KG | 50pc/bundle | |||||
| HHAL41625 | 2.5 mm | 5.5KG | 50pc/bundle |
An aluminum strut channel is notably lightweight, which simplifies its transportation and installation processes without requiring heavy equipment for lifting and positioning during projects.
It possesses exceptional natural corrosion resistance because aluminum automatically generates a protective oxide layer, ensuring reliable performance in harsh or moist environments without additional treatments.

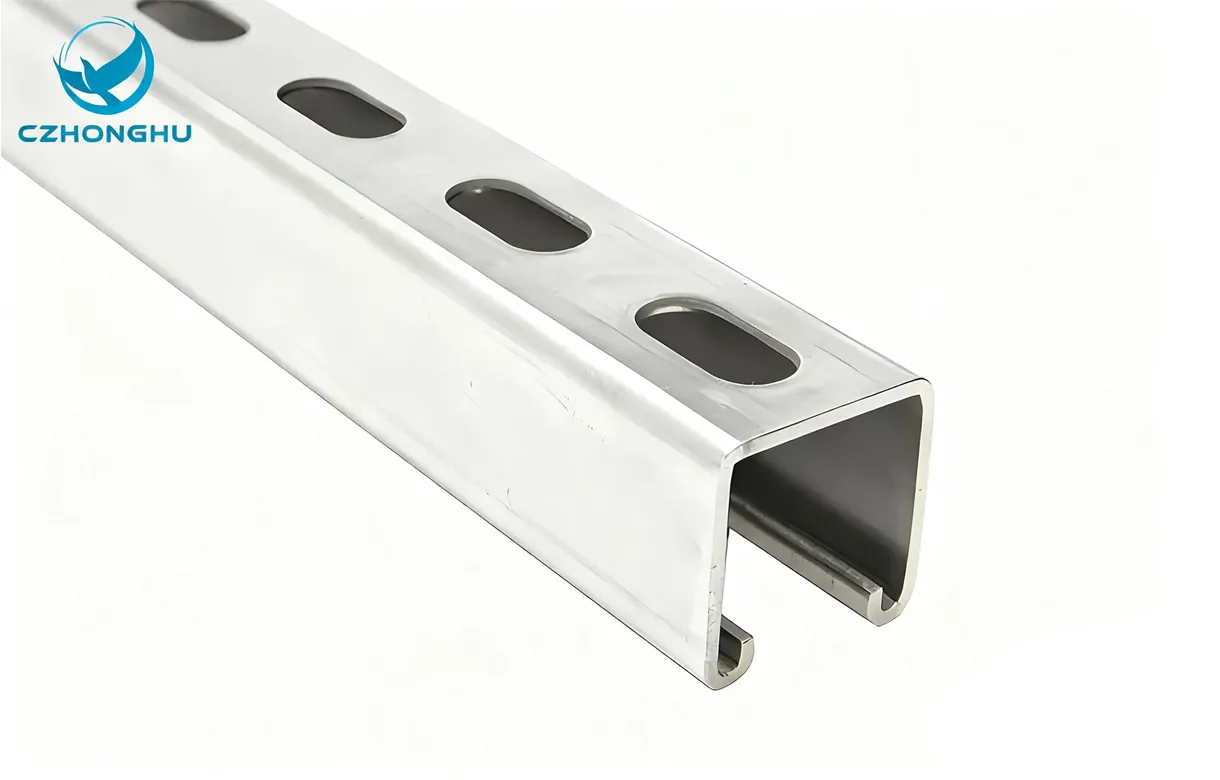

This channel retains the standard U-shaped design with slotted holes, providing strong structural support and enabling versatile, adjustable connections for various components and configurations.
A key technical feature is its non-magnetic property, making it particularly suitable for applications in sensitive settings such as electrical and electronic installations.
Its lightweight and durable qualities help reduce labor time and costs, and its corrosion resistance minimizes long-term maintenance by eliminating the need for painting or protective coatings.
Aluminum is fully recyclable, positioning the aluminum strut channel as an environmentally sustainable choice for modern construction and industrial applications.
