Back-to-Back Strut Channel

Name: Back-to-Back Strut Channel
Brand: Hebei Daokang International Trading Co.,ltd
Availability: InStock

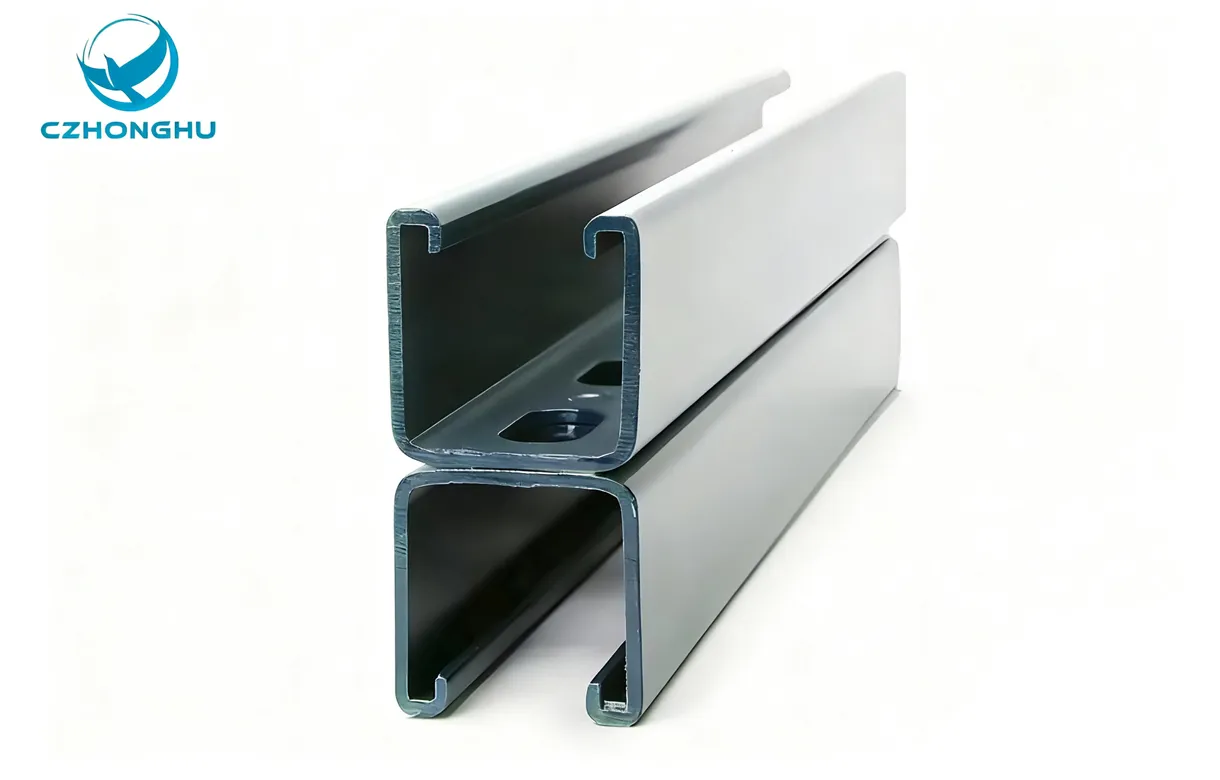

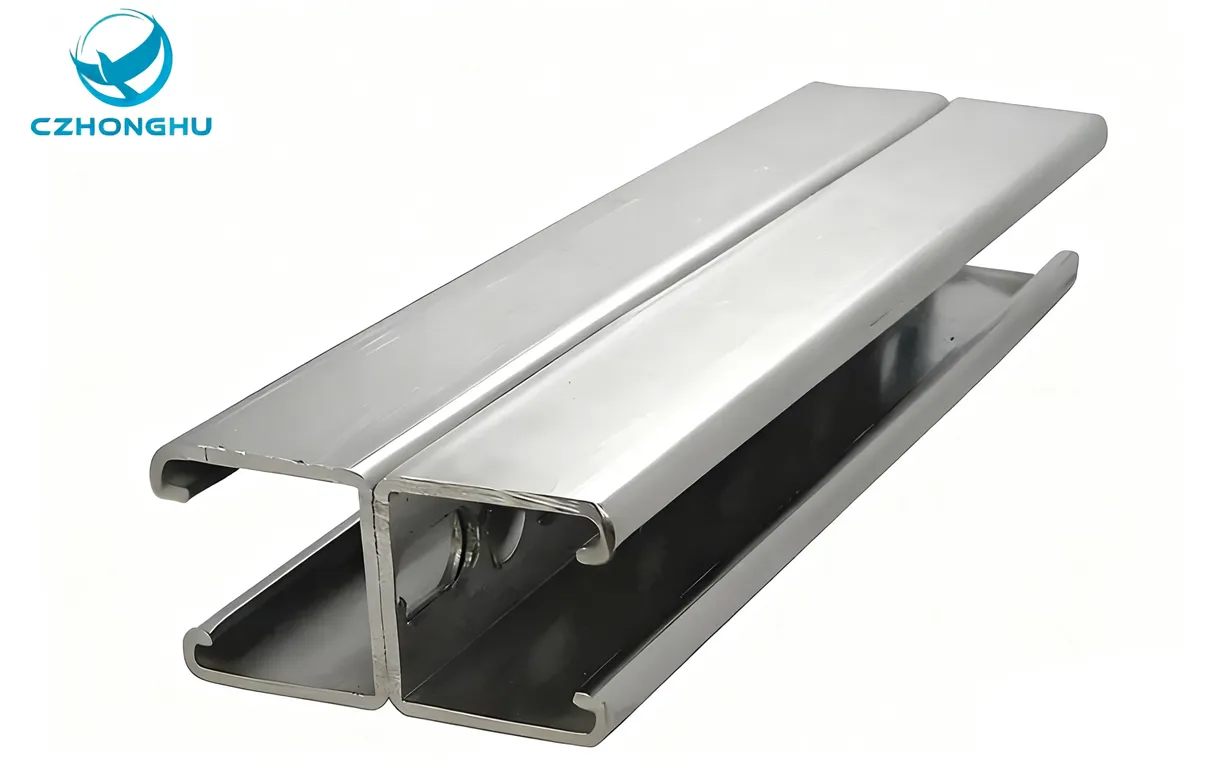

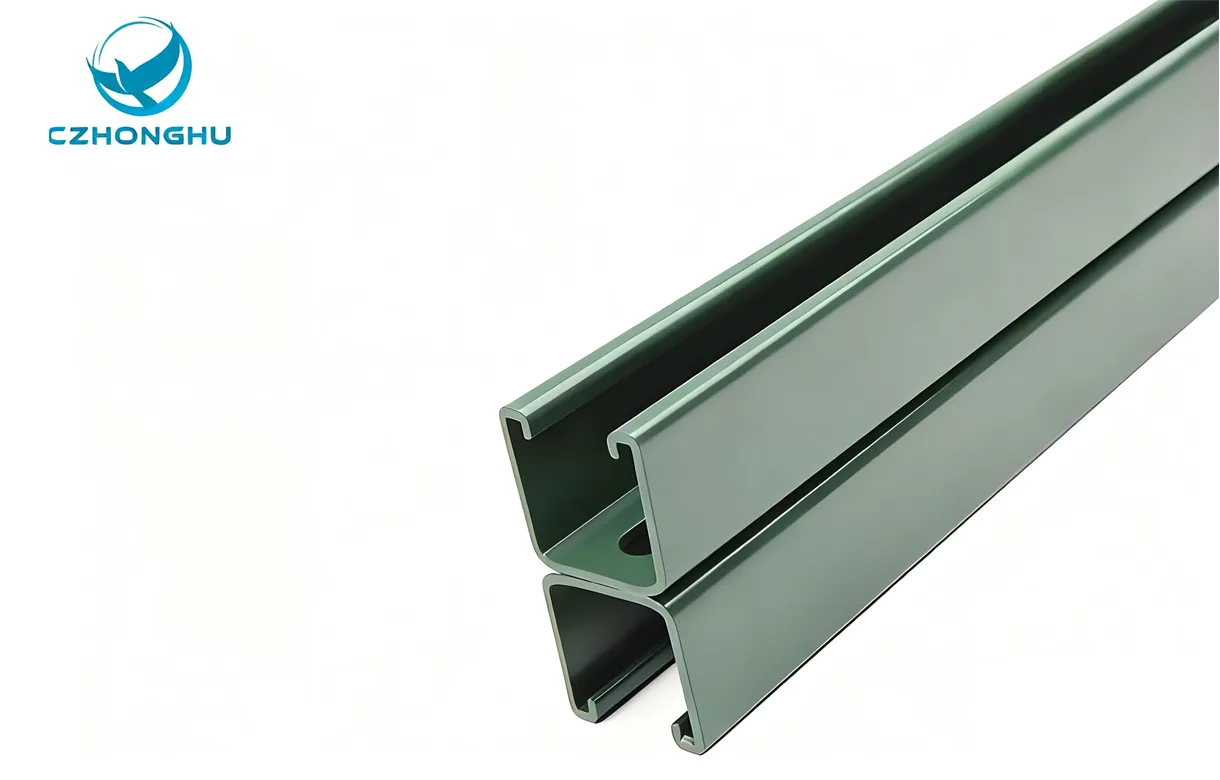

Back-to-Back Strut Channel Ensures Unmatched Stability

Back-to-back strut channel is a heavy-duty structural assembly created by fastening two standard slotted strut channels directly together at their bases. This construction forms a single, composite unit that resembles a strong I-beam profile. The primary purpose of this configuration is to multiply the load-bearing capacity and structural rigidity far beyond what a single channel can provide.

The defining function of the back-to-back strut channel is to resist extreme bending moments and torsional forces, effectively preventing sagging or failure under substantial weight. Its design capitalizes on the combined strength of both individual channels, distributing the load evenly across the entire assembly. Furthermore, the back-to-back strut channel retains the versatility of the standard slotted design, allowing for accessories and bolts to be attached anywhere along its length on all four sides.

Inquiry Now

Technical Data of Back-to-Back Strut Channel

Item	P/N	Length	Size WXH	Thickness	Material	Finishes Option	Weight	Standard Pack
Back-to-Back Strut Channel	HHUCBB41310	3.05m	1-5/8" X 3-1/4" 41.3mm X 82.5mm	1.0 mm	AL6005-T5	AL6005-T5	1.1KG	50pc/bundle
	HHUCBB41315			1.5 mm			1.6KG	50pc/bundle
	HHUCBB41320			2.0 mm			2.2KG	50pc/bundle
	HHUCBB41325			2.5 mm			2.8KG	50pc/bundle
	HHUCBB41610	6.09m	1-5/8" X 3-1/4" 41.3mm X 82.5mm	1.0 mm	AL6005-T5	AL6005-T5	2.2KG	50pc/bundle
	HHUCBB41615			1.5 mm			3.3KG	50pc/bundle
	HHUCBB41620			2.0 mm			4.4KG	50pc/bundle
	HHUCBB41625			2.5 mm			5.5KG	50pc/bundle

Back-to-Back Strut Channel Video

Features of Back-to-Back Strut Channel

I-Beam Construction: The primary feature of the back-to-back strut channel is its composite I-beam-like design, created by securely fastening two standard slotted steel channels base-to-base.
Multiple Attachment Points: This design integrates the signature slotted holes from both individual channels, providing versatile attachment points on all four sides of the assembly.
Structural Integrity: The assembly is engineered for exceptional structural integrity, offering a significantly greater moment of inertia, which is the key to its superior strength.
High Load-Bearing Capacity: Its key advantage is a dramatically increased load-bearing capacity and rigidity, enabling support for heavy weights over much longer spans without sagging.
Dual Functionality: A major benefit is its dual functionality, providing immense strength while retaining full modularity and accessory compatibility for easy installation.
Versatile Application: This combination of brute force and adaptability makes the back-to-back strut channel an indispensable solution for the most demanding support applications in construction and industrial settings.
