Channel Cable Tray

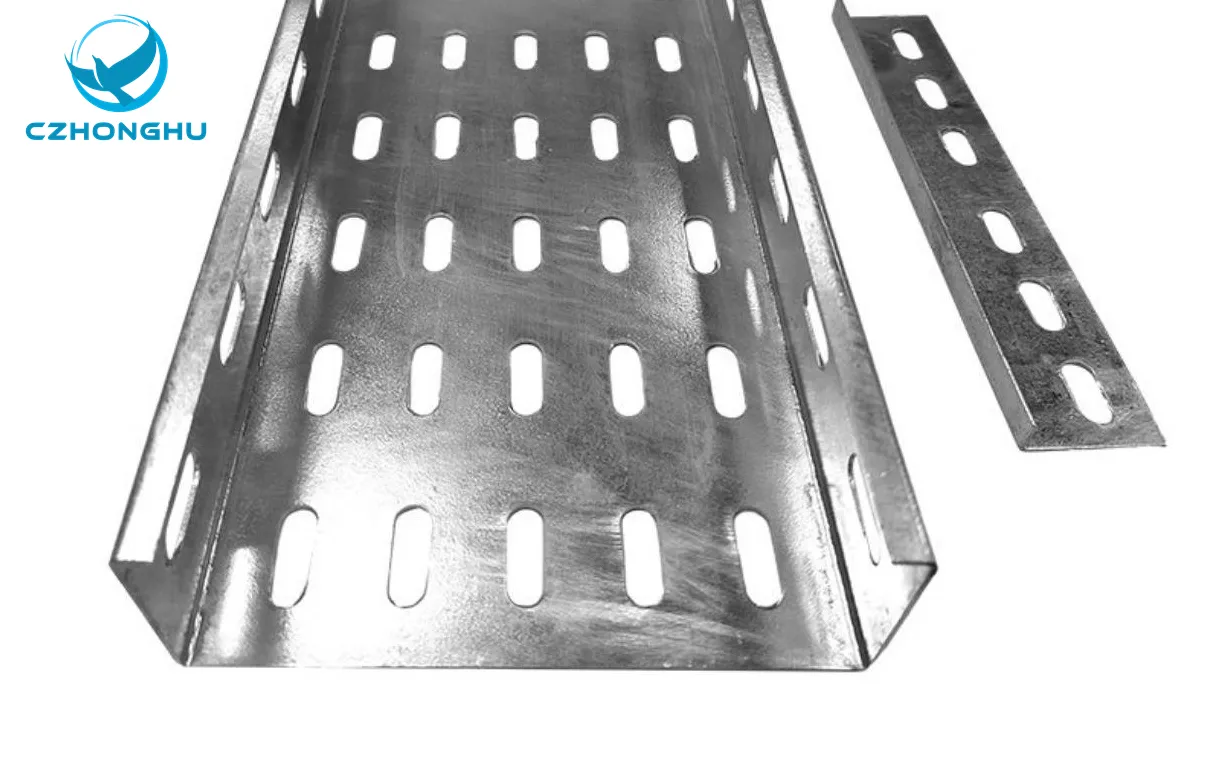

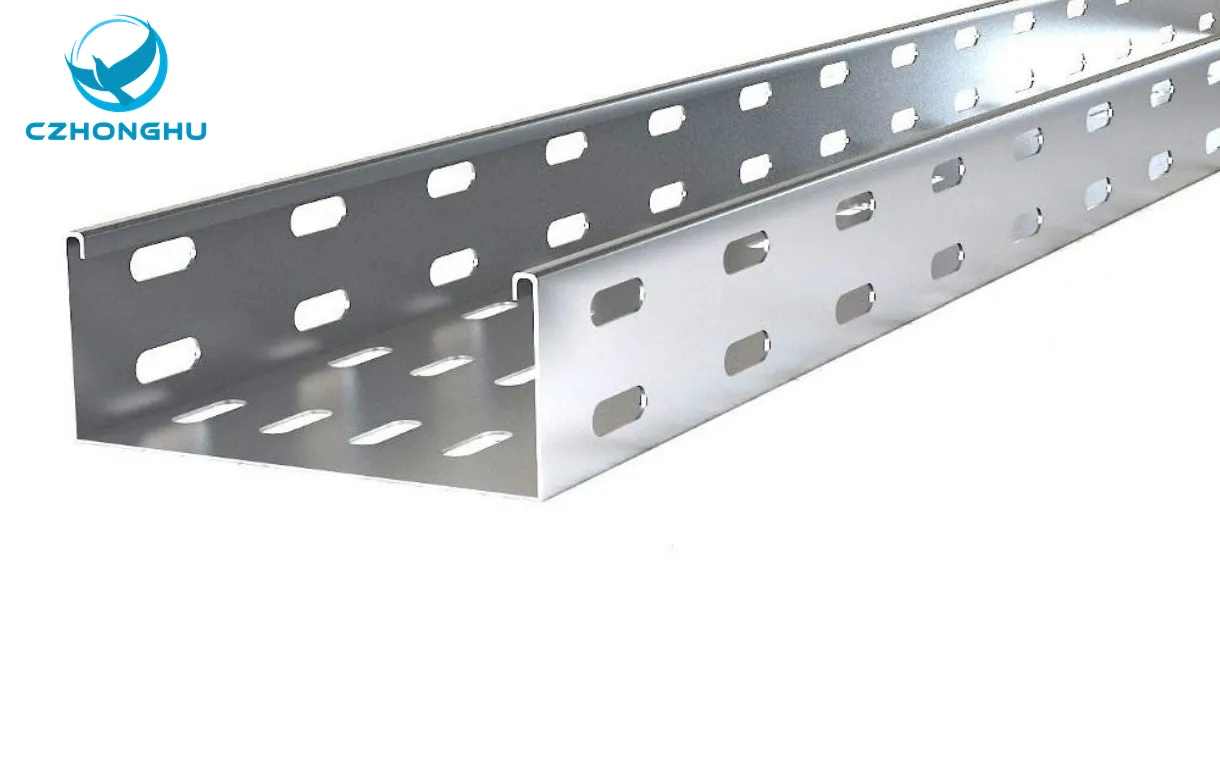

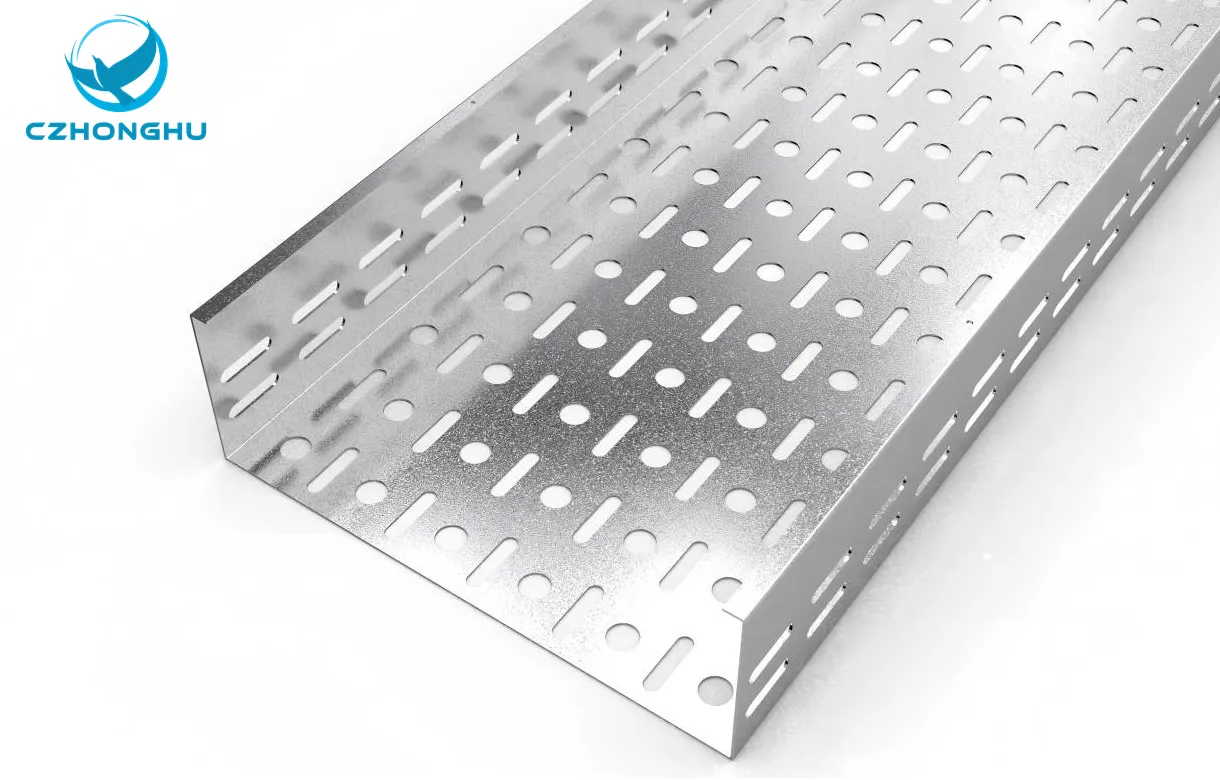

Design & Profile: A channel cable tray features a simplistic, U-shaped design consisting of a single, solid-bottomed channel with no cover. This open-top profile facilitates easy and rapid installation of cables, as they can be laid directly into the tray without threading.

Material & Construction: Typically constructed from pre-galvanized steel, stainless steel, or aluminum, this type of cable tray offers significant strength and durability. These materials provide excellent resistance to corrosion, making the system suitable for various demanding environments, from industrial plants to data centers.

Load Capacity & Support: Despite its minimalist appearance, a channel cable tray is engineered to support substantial static loads. Its rigid structure allows for longer support spans compared to some ladder-type trays, reducing the overall number of required mounting points and hardware.

Flexibility & Access: The design prioritizes accessibility and modification. The open access allows for effortless additions, removals, or rerouting of cables at any point along the run. This makes any channel cable tray system highly adaptable to future changes.

Application: This support system is ideal for managing lighter cable loads in less complex runs, such as for power feeders, instrumentation cables, or wiring drops from a larger backbone system. The practical channel cable tray is a fundamental component for organized cable management.
