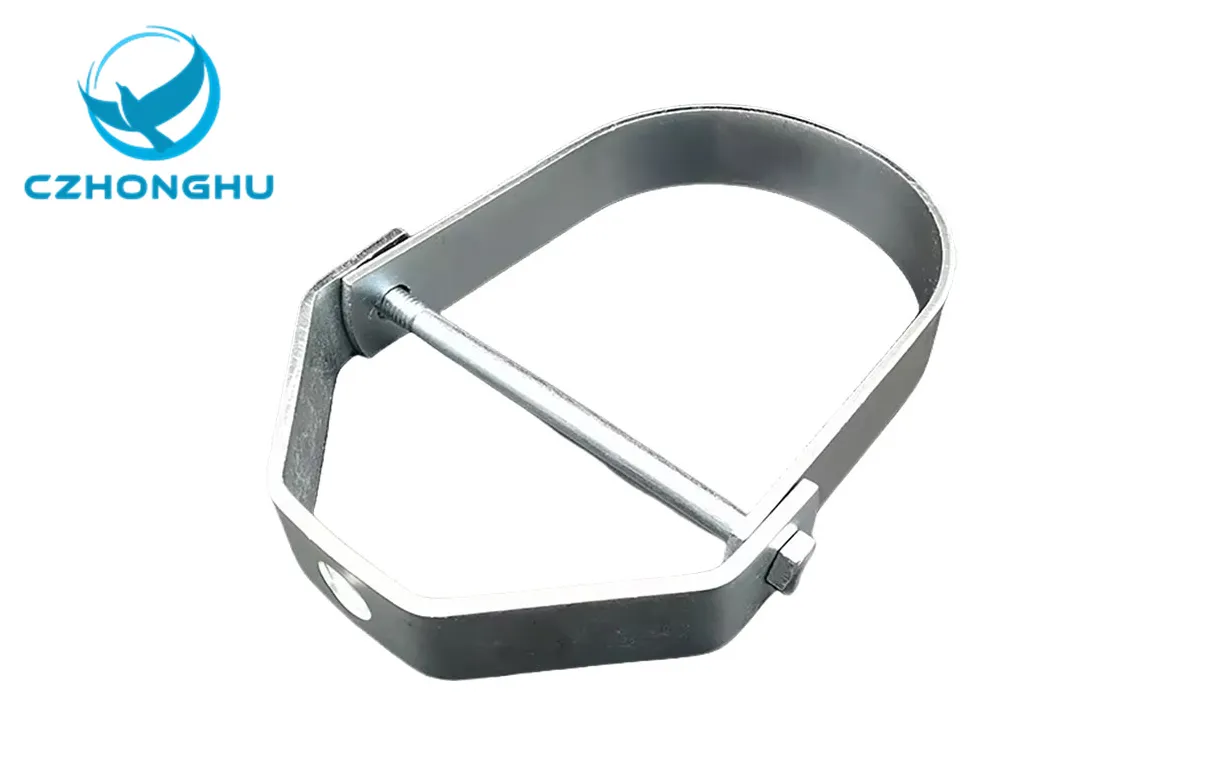

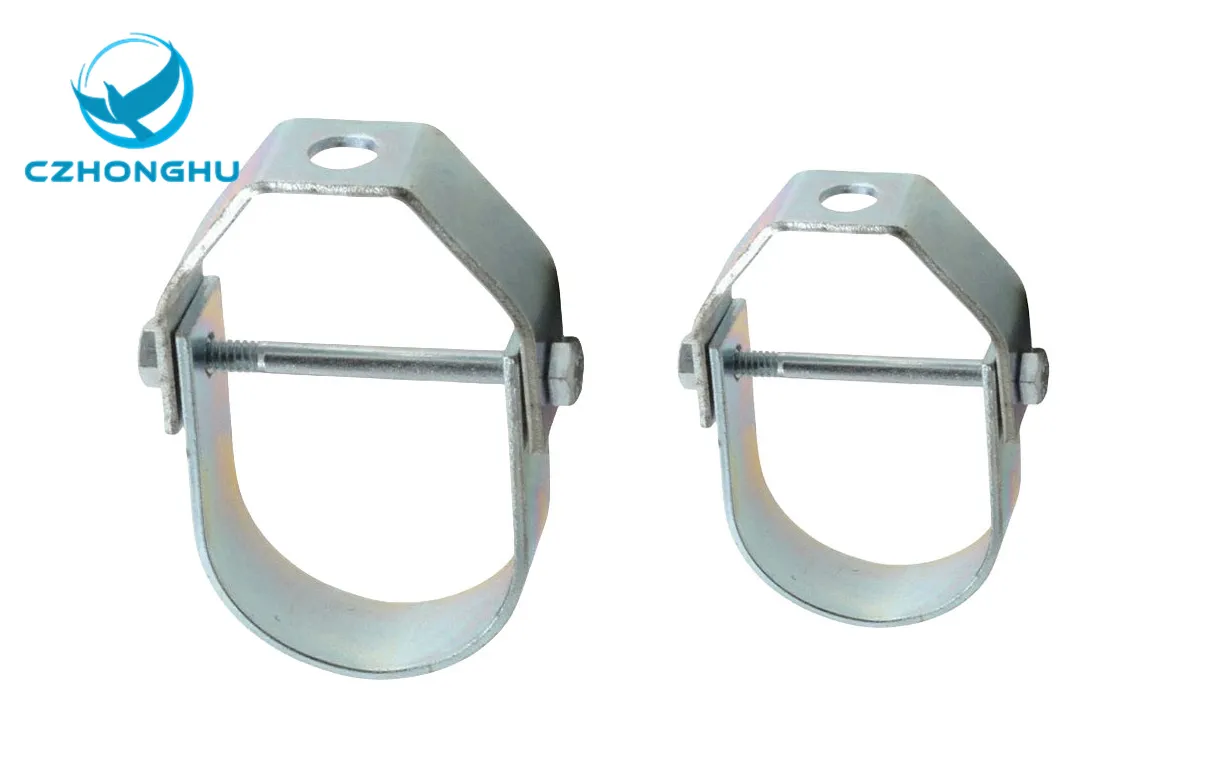

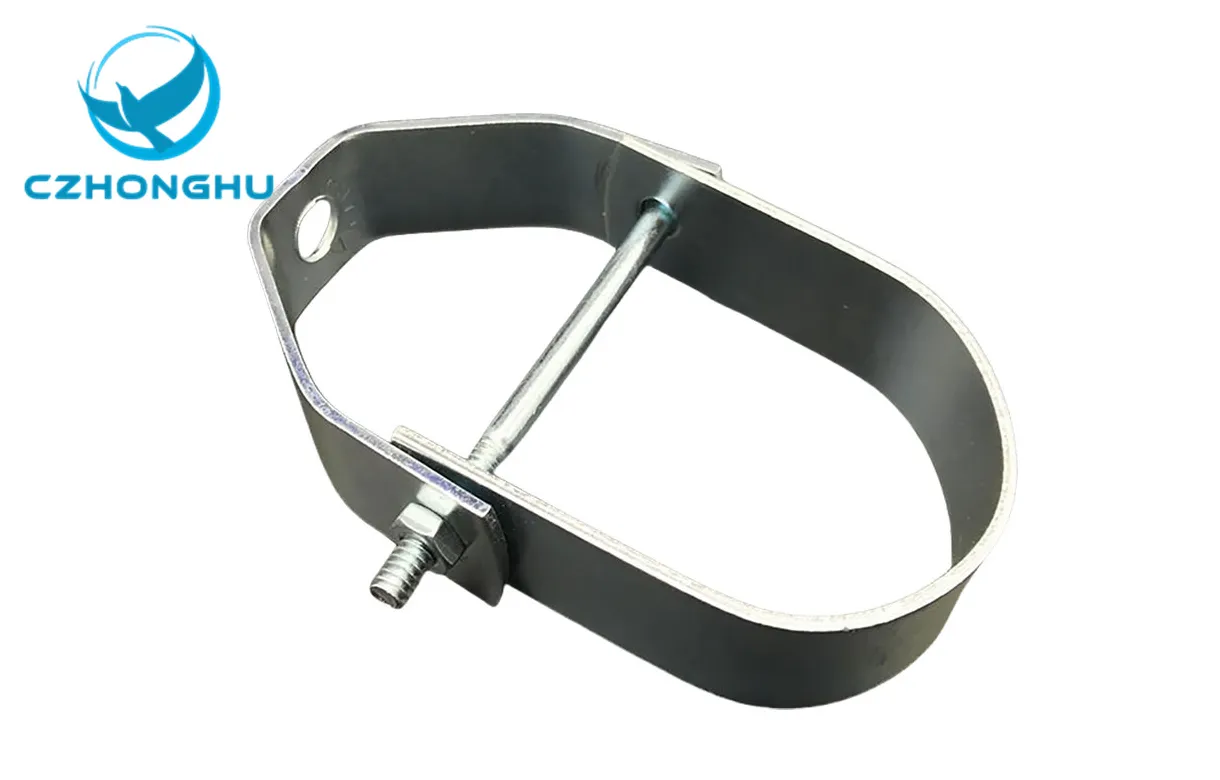

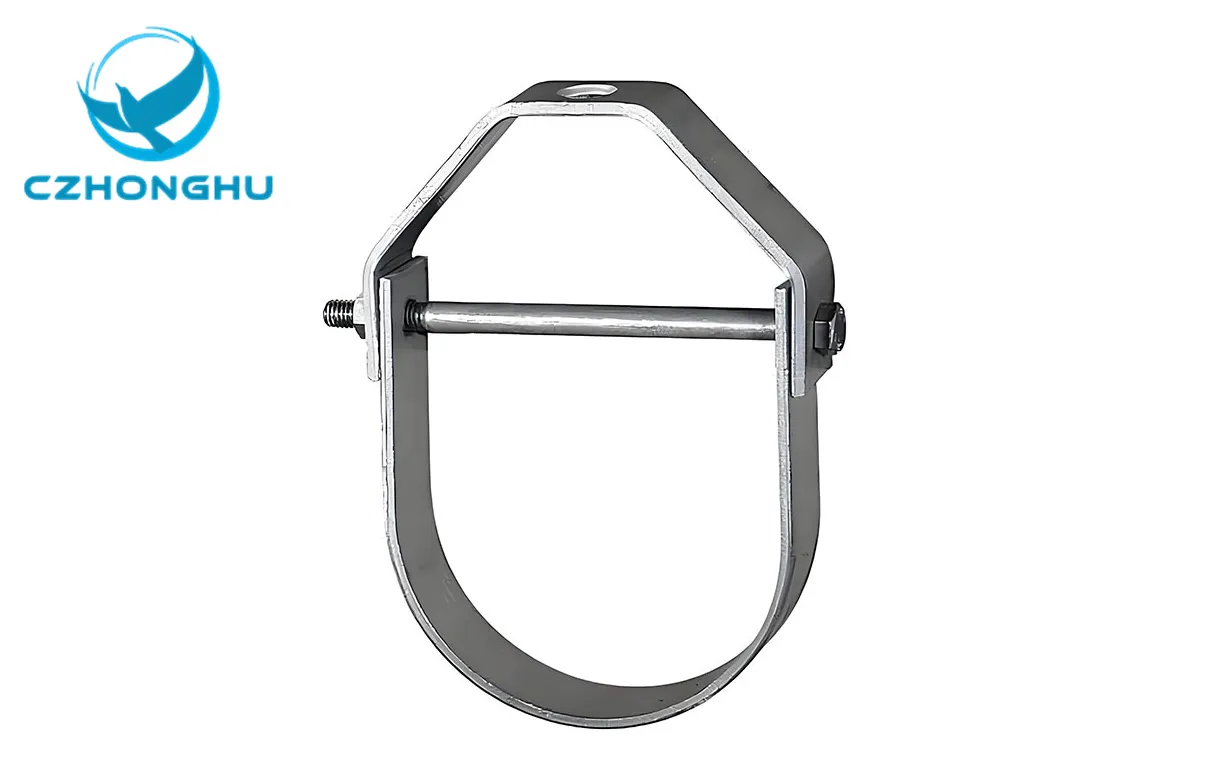

A clevis hanger is a two-part adjustable device for suspending pipes. Its top section is a U-shaped clevis that attaches to a threaded rod, while the bottom is a formed strap supporting the pipe. Connected by a pin, this joint allows pivoting. The assembly is secured overhead with nuts and washers. Its primary function is to support the pipe's weight and contents, permit vertical adjustment, restrict lateral movement, and accommodate limited vertical pivoting due to thermal expansion.
| Iron Pipe Size | Specification Data | Rec. Max. Load (lbs.) | Approx. Wt. Per 100 (lbs.) | |||||||
| A | B | C | D | E | F | Upper | Lower | |||
| 1/2 | 3/8 | 1 1/8 | 1 11/16 | 2 1/16 | 1/4 | 7/16 | 13Ga x 7/8 | 13Ga x 7/8 | 610 | 18 |
| 3/4 | 3/8 | 1 1/8 | 1 11/16 | 2 9/16 | 1/4 | 7/16 | 13Ga x 7/8 | 13Ga x 7/8 | 610 | 18 |
| 1 | 3/8 | 15/16 | 2 1/16 | 2 11/16 | 1/4 | 5/8 | 13Ga x 7/8 | 13Ga x 7/8 | 610 | 22 |
| 1 1/4 | 3/8 | 1 5/8 | 2 17/2 | 3 11/16 | 1/4 | 7/8 | 13Ga x 7/8 | 13Ga x 7/8 | 610 | 26 |
| 1 1/2 | 3/8 | 1 7/8 | 2 7/8 | 3 3/16 | 1/4 | 11/16 | 12Ga x 7/8 | 12Ga x 7/8 | 610 | 34 |
| 2 | 3/8 | 2 1/4 | 3 5/16 | 4 7/16 | 5/16 | 1 1/4 | 12Ga x 7/8 | 12Ga x 7/8 | 610 | 38 |
| 2 1/2 | 3/8 | 2 7/8 | 3 7/16 | 4 7/8 | 1/4 | 115/16 | 9Ga x 13/16 | 10Ga x 13/16 | 1130 | 86 |
| 3 | 1/2 | 35/16 | 4 3/4 | 6 1/2 | 5/16 | 1 3/4 | 9Ga x 13/16 | 10Ga x 13/16 | 1130 | 96 |
| 3 1/2 | 1/2 | 4 1/32 | 5 15/16 | 7 15/16 | 5/16 | 2 9/16 | 8Ga x 13/16 | 10Ga x 13/16 | 1130 | 114 |
| 4 | 5/8 | 4 7/8 | 5 7/8 | 8 3/16 | 3/8 | 2 17/8 | 8Ga x 13/16 | 10Ga x 13/16 | 1430 | 126 |
| 5 | 5/8 | 4 3/16 | 5 11/16 | 8 7/16 | 1/2 | 1 7/16 | 4Ga x 1 1/4 | 8Ga x 1 1/4 | 1430 | 204 |
| 6 | 3/4 | 5 1/16 | 6 13/16 | 10 1/8 | 1/2 | 1 3/4 | 3Ga x 1 1/2 | 8Ga x 1 1/2 | 1940 | 240 |
| 8 | 3/4 | 6 3/16 | 8 1/16 | 12 7/16 | 5/8 | 1 7/8 | 3Ga x 1 3/4 | 8Ga x 1 3/4 | 2000 | 486 |
| 10 | 7/8 | 6 3/4 | 10 9/16 | 15 7/16 | 3/4 | 2 13/16 | 3/8 x 1 3/4 | 3Ga x 1 3/4 | 3600 | 806 |
| 12 | 7/8 | 7 3/32 | 11 10/16 | 15 7/8 | 3/4 | 2 1/4 | 3/8 x 2 | 3Ga x 2 | 3600 | 1034 |
| 14 | 1 | 9 1/4 | 14 3/8 | 20 1/4 | 7/8 | 4 3/8 | 1/2 x 2 | 1/4 x 2 | 4200 | 1430 |
| 16 | 1 | 11 5/16 | 16 15/16 | 21 15/16 | 1 | 2 13/16 | 1/2 x 2 1/2 | 1/4 x 2 1/2 | 4600 | 2100 |
| 18 | 1 | 13 7/8 | 13 1/16 | 22 5/26 | 1 | 3 9/16 | 1/2 x 2 1/2 | 1/4 x 2 1/2 | 4800 | 2440 |
| 20 | 1 1/4 | 15 1/8 | 17 3/4 | 27 3/12 | 1 1/4 | 3 3/4 | 5/8 x 3 | 3/8 x 3 | 4800 | 4700 |
| 24 | 1 1/4 | 18 3/8 | 23 1/2 | 31 1/4 | 1 1/4 | 4 | 5/8 x 3 | 3/8 x 3 | 4800 | 5800 |
This specification sheet is for reference only. Aimco Intemational Group Corp.reserves the right to make changes to the design without prior notice.
Material: Typically made from carbon steel (e.g., ASTM A36) for general service. Stainless steel (e.g., 304 or 316) is used for corrosive environments or high-purity applications.
Finish: Common finishes include hot-dip galvanized (for corrosion resistance), black (plain mill finish), or sometimes painted.
Vertical Adjustability: The most prominent feature. Nuts on the threaded rod above and below the clevis allow for precise height positioning.
Pivoting Action: The clevis pin connection allows the pipe to pivot slightly, preventing stress on the hanger and piping during thermal movement.
Rigid Support: Provides strong, dependable support, restricting horizontal movement.
Two-Piece Design: Simplifies installation; the bottom strap can be placed on the pipe before the top clevis is attached.
