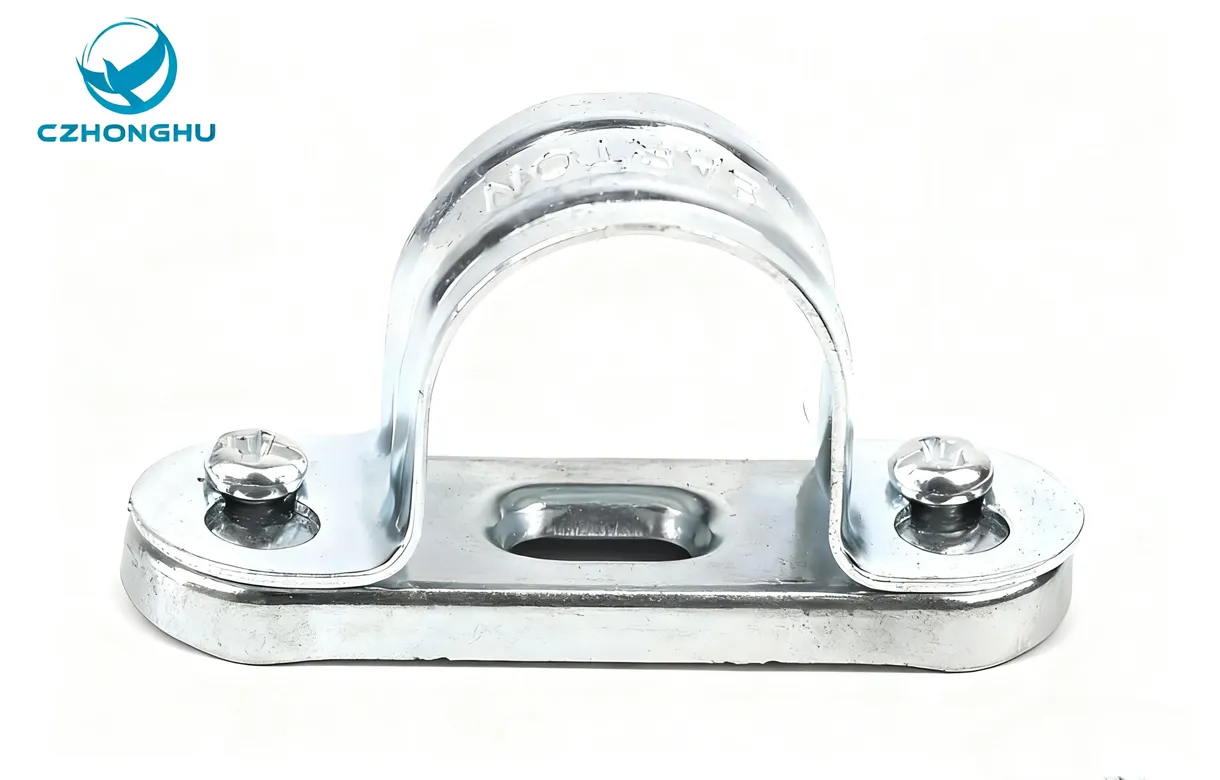

Conduit Distance Saddle is a specialized conduit fitting used to securely fasten and support electrical conduit runs on a flat surface while maintaining a precise, elevated distance. The primary function of a Conduit Distance Saddle is to create a stable and consistent air gap between the conduit and the mounting surface.
This gap is crucial for protecting the conduit from moisture, debris, and corrosion, while also allowing for thermal expansion and contraction. By lifting and clamping the conduit, this saddle ensures a secure, long-lasting, and code-compliant installation, preventing sagging and potential damage to the electrical wiring inside.
| Conduit Distance Saddle | ||||||
| PN | Bundle Diameter | Material | Surface Treatment | Thickness | Specification | inner box |
| HHCDS20 | 20 | Malleable Iron/Steel/Stainless Steel | GI/HDG/SST | 0.9mm-1.2mm | BS 4568/BS 31 | 200pcs/box |
| HHCDS25 | 25 | Malleable Iron/Steel/Stainless Steel | GI/HDG/SST | 0.9mm-1.2mm | BS 4568/BS 31 | 150pcs/box |
| HHCDS32 | 32 | Malleable Iron/Steel/Stainless Steel | GI/HDG/SST | 0.9mm-1.2mm | BS 4568/BS 31 | 100pcs/box |
| HHCDS38 | 38 | Malleable Iron/Steel/Stainless Steel | GI/HDG/SST | 0.9mm-1.2mm | BS 4568/BS 31 | 100pcs/box |
| HHCDS50 | 50 | Malleable Iron/Steel/Stainless Steel | GI/HDG/SST | 0.9mm-1.2mm | BS 4568/BS 31 | 50pcs/box |
| Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Beverage, Architectural companies & many more | ||||||

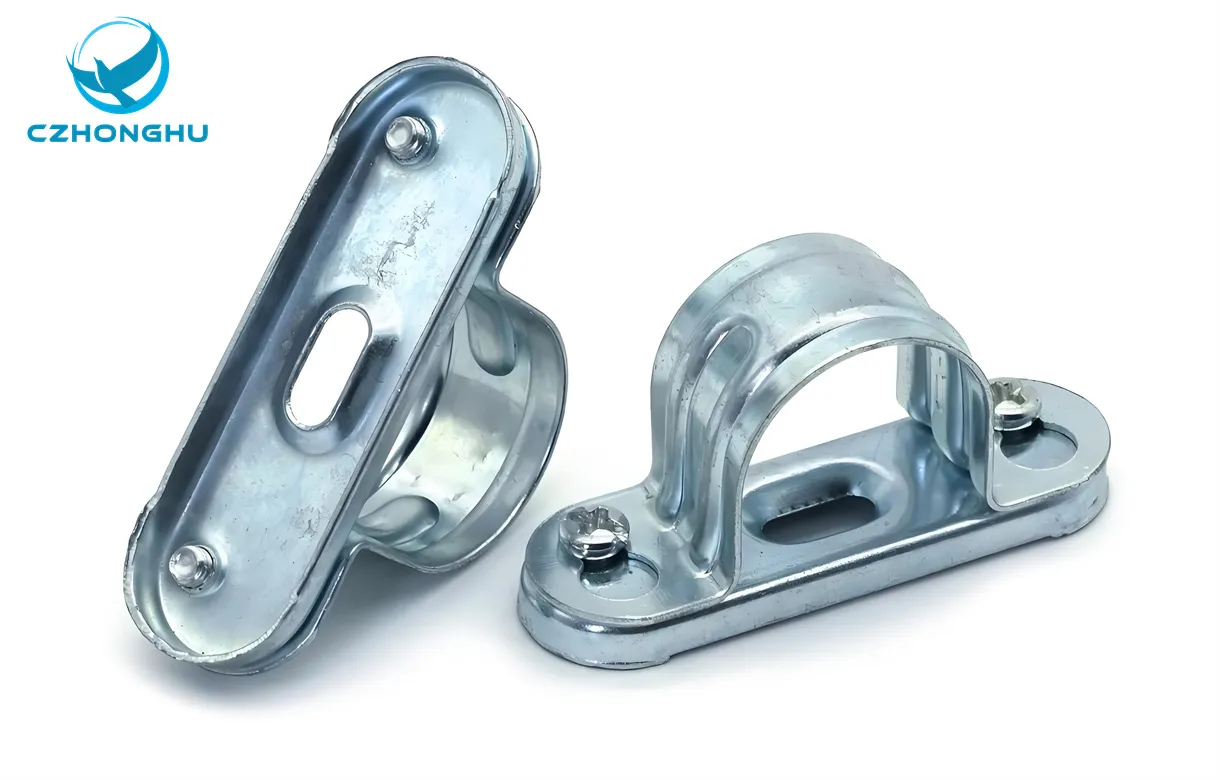

Conduit Distance Saddle features an extended arch or leg design that creates a consistent, predetermined air gap between the conduit and the mounting surface.
This critical gap, provided by the Conduit Distance Saddle, allows for essential airflow, which helps prevent moisture accumulation and potential corrosion on the metal conduit over time.
The design simplifies surface painting and cleaning by maintaining clear space behind the conduit run, improving both aesthetics and long-term maintenance access for the installation.
Using a Conduit Distance Saddle ensures full compliance with electrical codes that mandate specific clearances for conduit runs on certain building materials and surfaces.
Its rigid construction from galvanized materials offers the same robust support and anchoring strength as a standard rigid conduit clamp.
The primary advantage is enhanced system longevity, protecting both the conduit and its valuable wiring by mitigating hidden moisture and contact damage.
