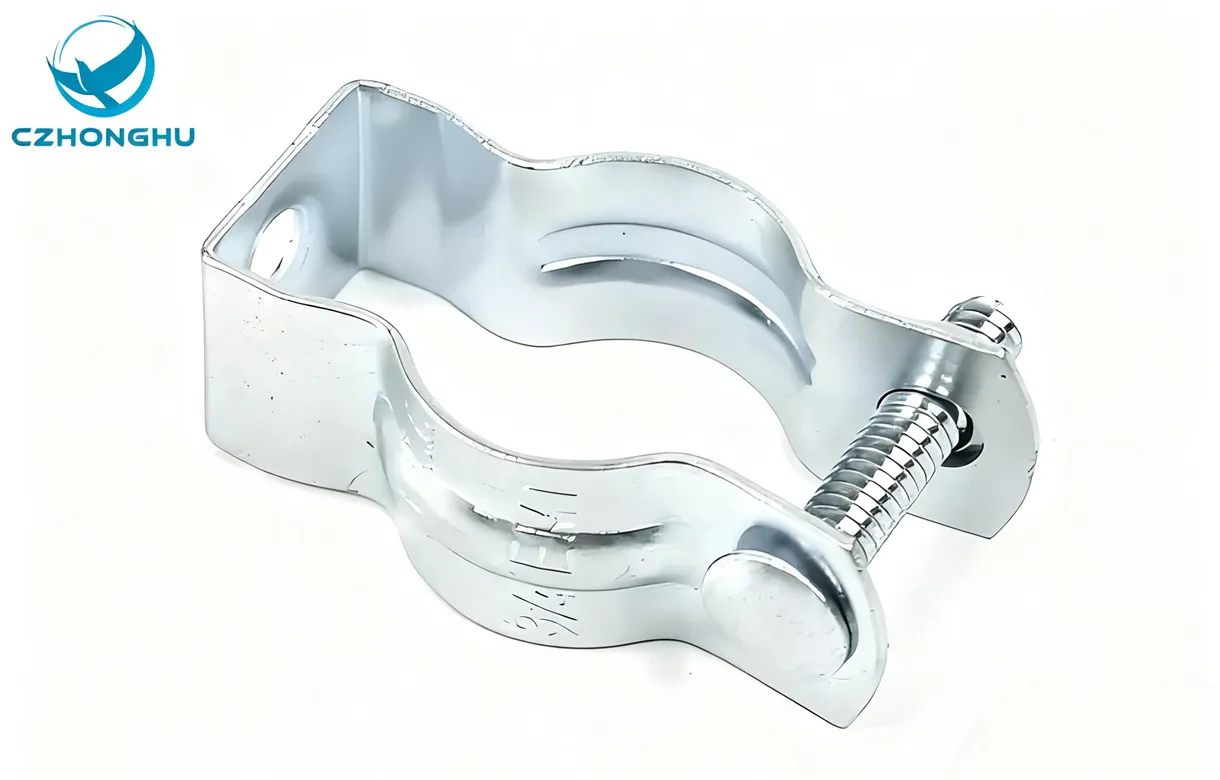

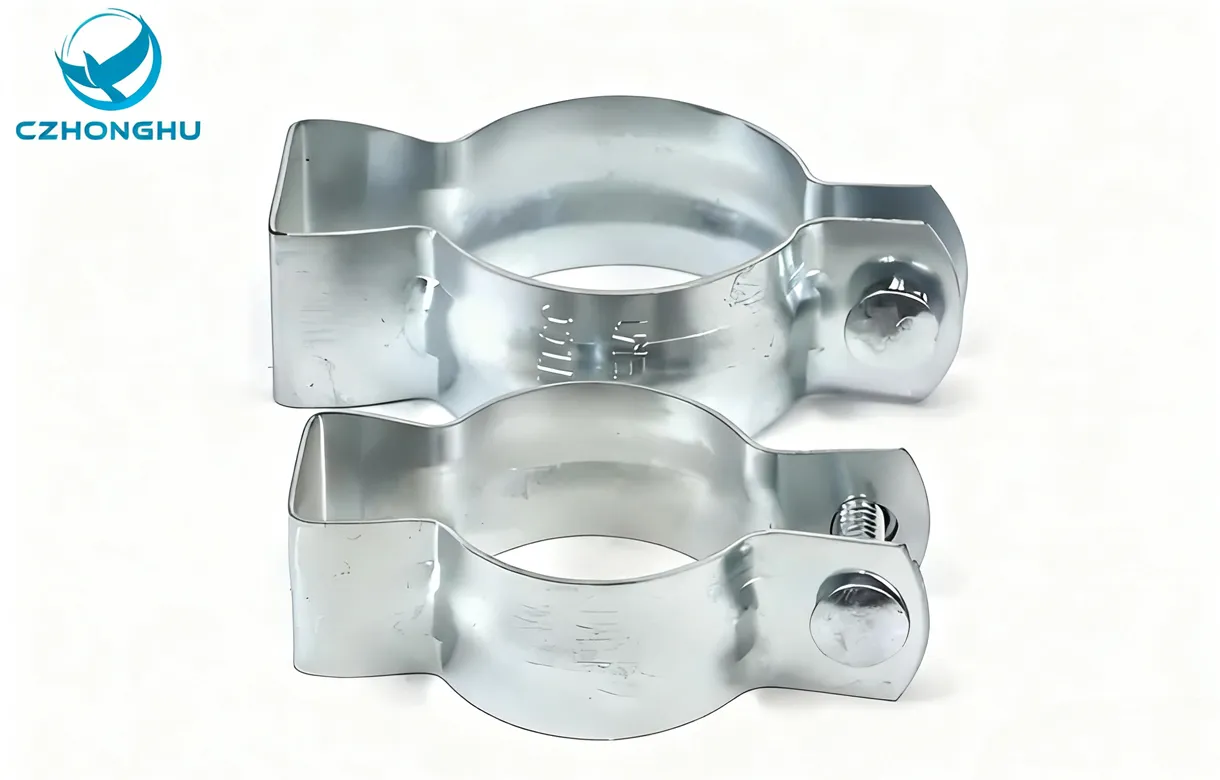

Conduit Hanger is a specialized electrical accessory designed to suspend electrical conduits (e.g., EMT, rigid steel, PVC) from overhead surfaces like ceilings, joists, or beams. Crafted from durable materials—such as galvanized steel, stainless steel, or reinforced plastic—it provides stable vertical/horizontal support, ensuring conduits stay aligned and secure.
The Conduit Hanger’s primary function is to prevent conduit sagging, displacement, or damage from vibration, gravity, or environmental stress. Its design (often U-shaped, looped, or clamp-style) grips conduits firmly while maintaining safe spacing from structural elements, reducing corrosion and wear.
ompliant with standards like the NEC, the Conduit Hanger accommodates various conduit sizes, making it vital for commercial, industrial, and residential installations. Easy to install via bolts or screws, it optimizes cable management, ensures code adherence, and preserves conduit integrity long-term—key for reliable electrical systems.
| Conduit Hanger/Ring Hangers Clamp | |||||
| size | Total length | Hole Diameter | Thickness | Specifications | Surface Treatment |
| 1/2"" | 63 mm | 3/8 | 1.00 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 3/4"" | 65 mm | 3/8 | 1.00 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 1"" | 69 mm | 3/8 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 1 1/4"" | 80 mm | 3/8 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 1 1/2"" | 86 mm | 3/8 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 2" | 102 mm | 3/8 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 2 1/2"" | 122 mm | 3/8 | 1.50 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 3" | 141 mm | 3/8 | 1.50 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 4" | 176 mm | 1/2 | 1.50 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 6" | 247 mm | 1/2 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
| 8" | 327 mm | 1/2 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ |
Conduit Hanger provides versatile overhead support, typically from rods or cables, ideal for suspending conduit runs in open spaces like ceilings or mechanical rooms.
Its adjustable design allows for easy height alignment and leveling of multiple parallel conduits, ensuring a neat, professional, and organized installation for electricians.
Constructed from robust, galvanized materials, a Conduit Hanger offers excellent strength and corrosion resistance, suitable for demanding industrial and commercial environments.
The primary advantage of using a Conduit Hanger is its ability to support heavy loads while simplifying future maintenance or system expansion overhead.
This support method effectively isolates the conduit from building vibrations, reducing stress on the raceway and protecting the integrity of the electrical wiring inside.
