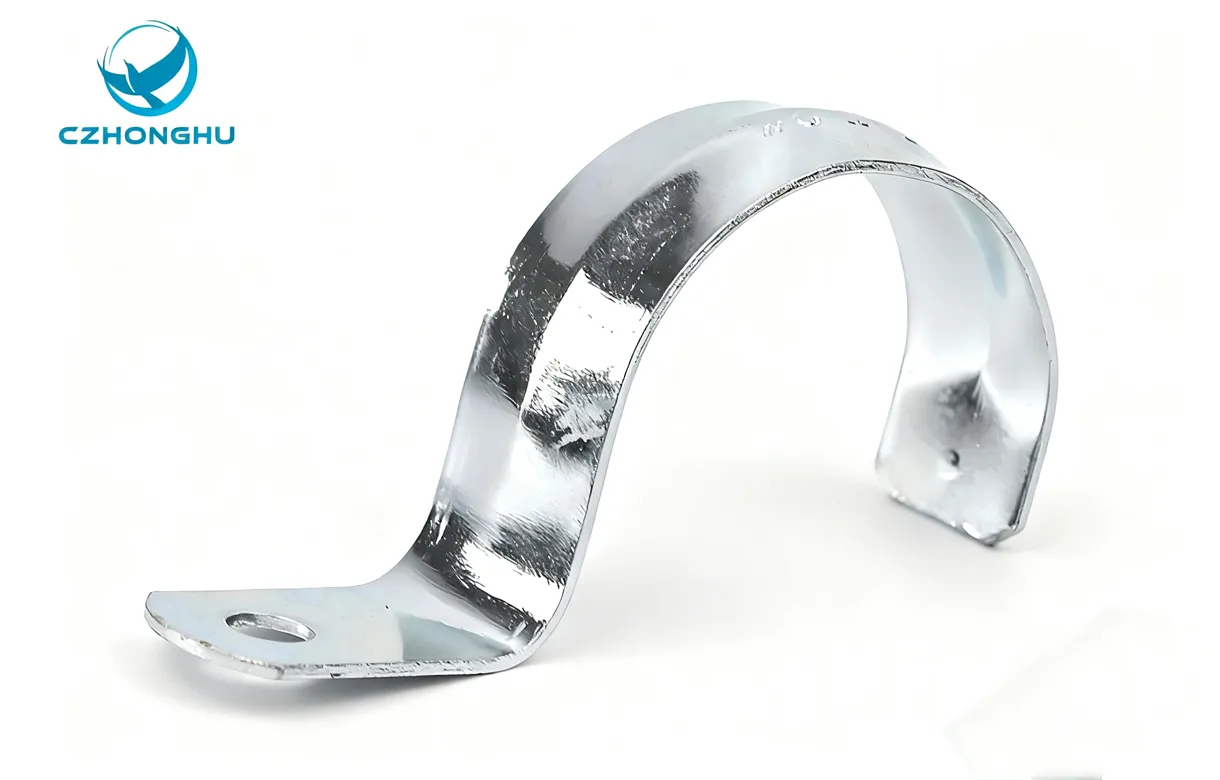

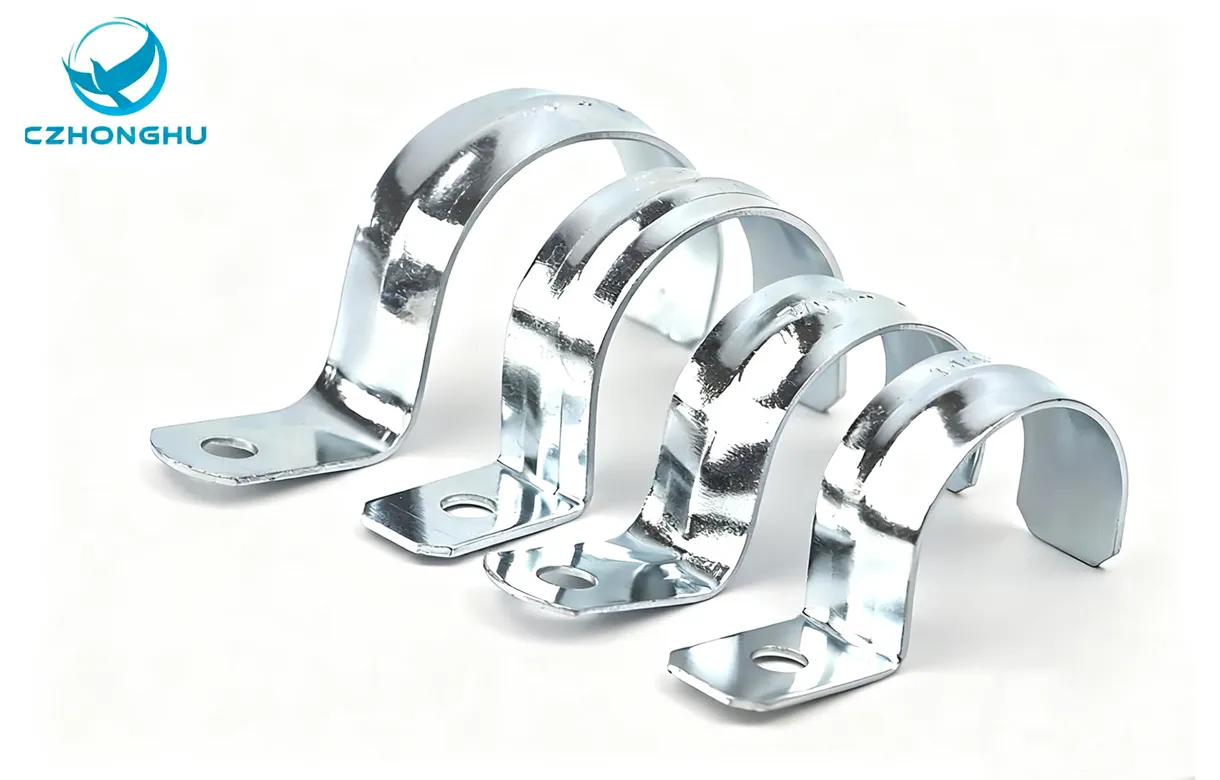

One-hole strap is a simple, U-shaped fastener used to secure conduit or pipe to a surface. It is constructed from a strip of zinc-plated steel, typically with a single, centered mounting hole.
Its primary function is to loop around a conduit and be anchored with a screw or bolt, holding it firmly against a wall, ceiling, or beam. This provides essential support, prevents sagging, and organizes runs.
Compared to two-hole straps, a one-hole strap offers quicker installation and is ideal for lighter-duty applications or where minimal hardware is preferred, though it provides less resistance to twisting.
| Emt one hole strap | ||||||||
| size | length | hole diameter | Thickness | Specification | Surface Treatment | pcs/ctn | KG/CTN | CTN Size |
| 3/8"" | 41 mm | 1/4 | 0.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | |||
| 1/2"" | 42 mm | 1/4 | 0.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 600 | 5.87 | 28*21*14 |
| 3/4"" | 53 mm | 1/4 | 0.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 500 | 5.58 | 28*21*14 |
| 1"" | 62 mm | 1/4 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 700 | 11.8 | 35*24*18 |
| 1 1/4"" | 80 mm | 5/16 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 400 | 9.5 | 35*24*18 |
| 1 1/2"" | 82 mm | 5/16 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 300 | 8.5 | 35*24*18 |
| 2"" | 108 mm | 5/16 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 200 | 8.7 | 35*24*18 |
| 2 1/2"" | 121 mm | 3/8 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 150 | 14.5 | 35*24*18 |
| 3"" | 150 mm | 3/8 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 70 | 8.3 | 35*24*18 |
| 4"" | 175 mm | 3/8 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 50 | 7.5 | 35*24*18 |
The ETM one-hole strap is crafted from electro-galvanized steel, providing exceptional corrosion resistance for reliable performance in demanding industrial, commercial, and residential electrical environments.
Its unique, deep U-shaped design and precision-rolled edges ensure a tight, secure fit around the conduit while protecting the wire insulation from abrasion.
The ETM one-hole strap features a pre-punched, centered hole that simplifies and speeds up installation, reducing labor time when anchoring to a variety of surfaces.
A key advantage of the ETM one-hole strap is its versatility, being suitable for securing both EMT (thin-wall) and rigid metal conduit types.
This robust design provides strong, dependable support that prevents conduit movement or sagging, ensuring a neat and code-compliant installation for electrical runs.
Its durability and thoughtful engineering guarantee long-term system integrity, making it a trusted choice for professional electricians.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
