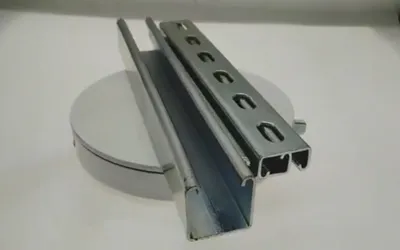

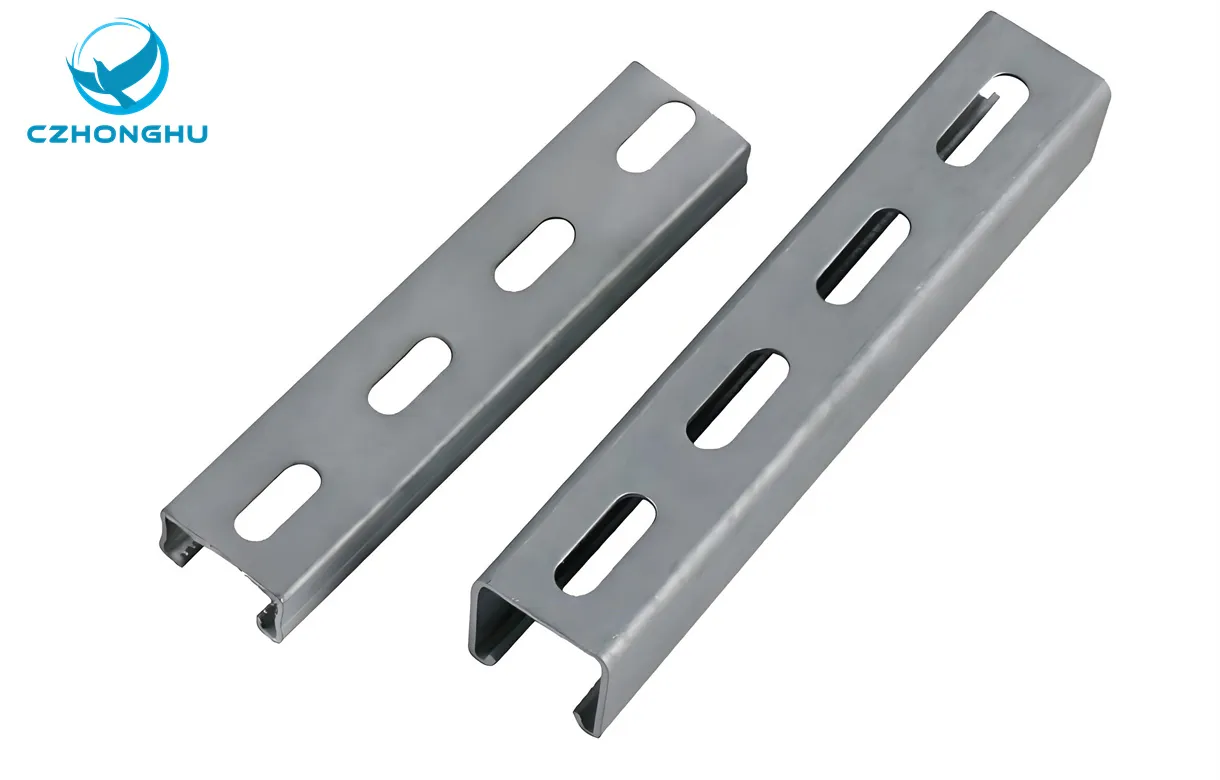

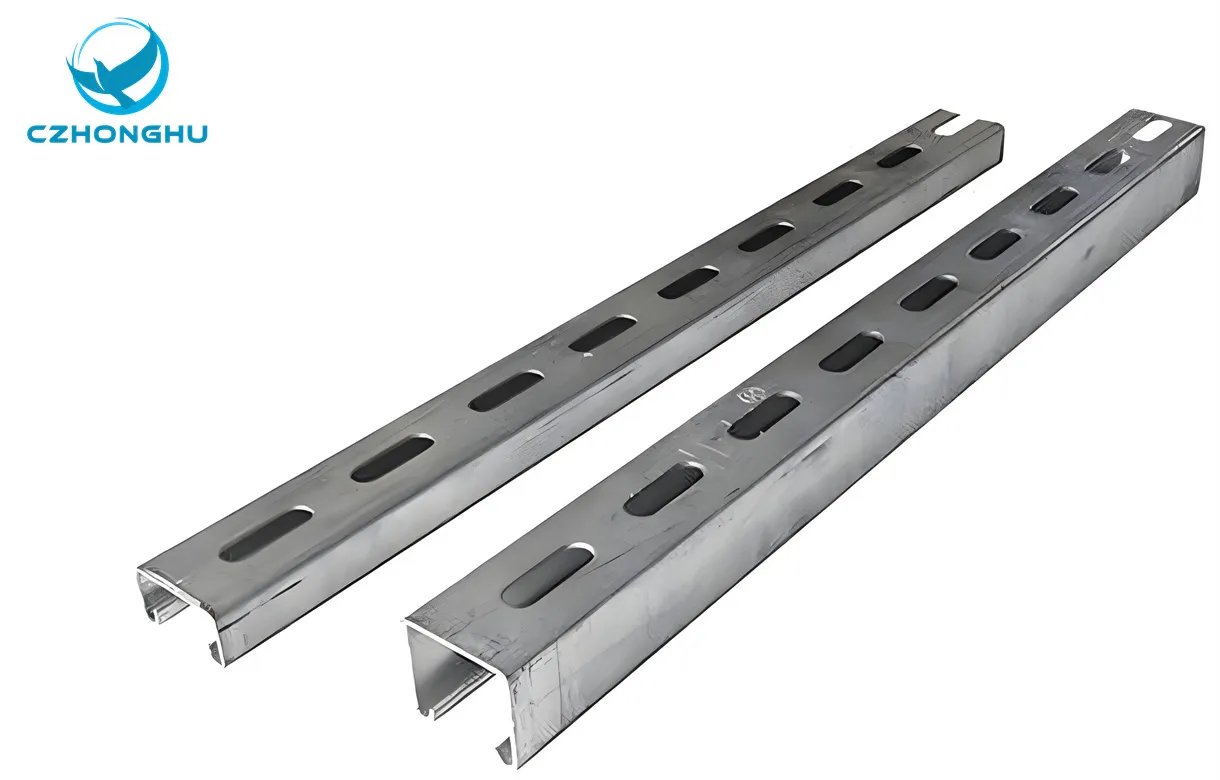

The GI/Galvanized Strut Channel is a U-shaped, hot-dip galvanized steel bracket designed to support electrical conduits, pipes, and mechanical components. Its open design and pre-punched holes allow for easy, tool-free installation using bolts and nuts. The zinc coating provides durable corrosion resistance by forming both a physical barrier and sacrificial protection.
Widely used in construction and industrial applications, it offers high strength, adaptability with compatible fittings, and long-term reliability in diverse environments—from damp basements to outdoor installations. This strut channel ensures efficient, maintenance-free support for infrastructure systems while balancing cost-effectiveness and structural integrity.
| Item | P/N | Length | Size WXH | Hole Spacing Center to Center | Hole diameter | Thickness | Material | Finishes Option | Weight | Standard Pack |
| Slotted Strut channel | HHUC41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 2.9KG | 50pc/bundle |
| HHUC41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.2KG | 50pc/bundle | |||||
| HHUC41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 5.9KG | 50pc/bundle | |||||
| HHUC41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.4KG | 50pc/bundle | |||||
| HHUC41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 5.9KG | 50pc/bundle | |
| HHUC41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 8.8KG | 50pc/bundle | |||||
| HHUC41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 11.8KG | 50pc/bundle | |||||
| HHUC41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 14.7KG | 50pc/bundle | |||||
| Solid Strut Channel | HHUCP41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 3.1KG | 50pc/bundle |
| HHUCP41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.7KG | 50pc/bundle | |||||
| HHUCP41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 6.3KG | 50pc/bundle | |||||
| HHUCP41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.9KG | 50pc/bundle | |||||
| HHUCP41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 6.3KG | 50pc/bundle | |
| HHUCP41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 9.5KG | 50pc/bundle | |||||
| HHUCP41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 12.7KG | 50pc/bundle | |||||
| HHUCP41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 15.9KG | 50pc/bundle |
Structure and Material: Made of high-strength steel with an open U-shaped design, providing ample space to support pipes, cables, and mechanical components.
Protective Coating: Hot-dip galvanized with a robust zinc layer for effective corrosion resistance.
Ease of Installation: Pre-punched holes along both sides eliminate the need for on-site drilling, enabling quick assembly with bolts and nuts.
Load-Bearing Capacity: The sturdy steel base ensures excellent load-bearing performance, capable of supporting everything from lightweight cables to heavy industrial pipes without deformation.
Exceptional Durability: The zinc coating offers dual protection—it acts as a physical barrier against moisture and chemicals, and even if scratched, it sacrificially protects the underlying steel.
Wide Applicability: Suitable for various harsh environments (e.g., damp basements, dusty workshops, outdoor corridors, and subway tunnels), making it a standard solution in construction and industrial sectors.
Unmatched Flexibility: Can be easily combined with various accessories (e.g., right-angle connectors, hangers) to assemble horizontal, vertical, or curved support systems, meeting diverse routing needs.
