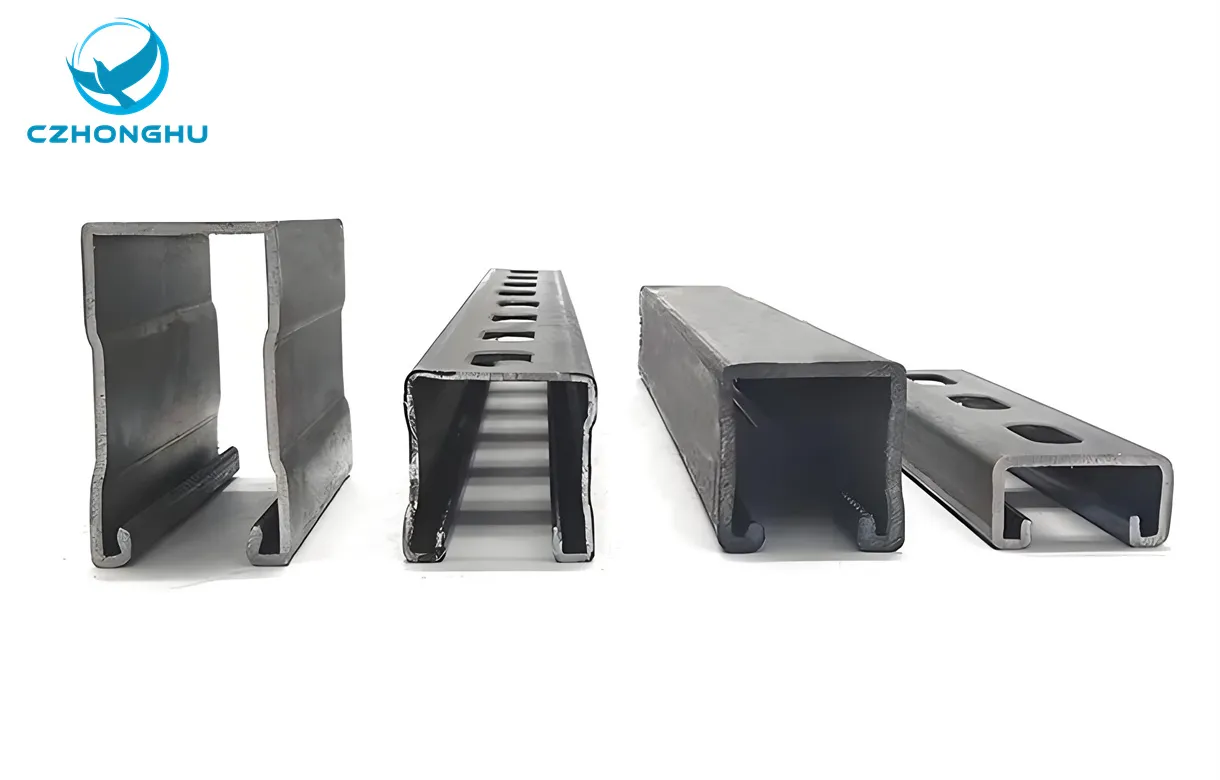

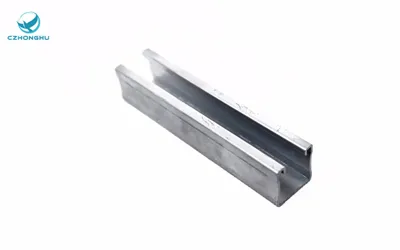

HDG Strut Channel is a galvanized steel channel used to construct a versatile support framework for electrical, mechanical, and plumbing systems. The "HDG" stands for Hot-Dip Galvanized, a process where the steel is coated in a layer of zinc to provide exceptional corrosion resistance, making it ideal for harsh or outdoor environments.
Its primary function is to brace, mount, and suspend equipment like conduit, pipes, and wire trays. The open-channel design allows for easy attachment of various fittings and components anywhere along its length, offering immense flexibility and strength. The durability of an HDG Strut Channel ensures a long-lasting and reliable support structure for critical infrastructure.
| Item | P/N | Length | Size WXH | Hole Spacing Center to Center | Hole diameter | Thickness | Material | Finishes Option | Weight | Standard Pack |
| Slotted Strut channel | HHUC41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 2.9KG | 50pc/bundle |
| HHUC41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.2KG | 50pc/bundle | |||||
| HHUC41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 5.9KG | 50pc/bundle | |||||
| HHUC41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.4KG | 50pc/bundle | |||||
| HHUC41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 5.9KG | 50pc/bundle | |
| HHUC41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 8.8KG | 50pc/bundle | |||||
| HHUC41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 11.8KG | 50pc/bundle | |||||
| HHUC41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 14.7KG | 50pc/bundle | |||||
| Solid Strut Channel | HHUCP41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 3.1KG | 50pc/bundle |
| HHUCP41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.7KG | 50pc/bundle | |||||
| HHUCP41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 6.3KG | 50pc/bundle | |||||
| HHUCP41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.9KG | 50pc/bundle | |||||
| HHUCP41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 6.3KG | 50pc/bundle | |
| HHUCP41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 9.5KG | 50pc/bundle | |||||
| HHUCP41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 12.7KG | 50pc/bundle | |||||
| HHUCP41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 15.9KG | 50pc/bundle |

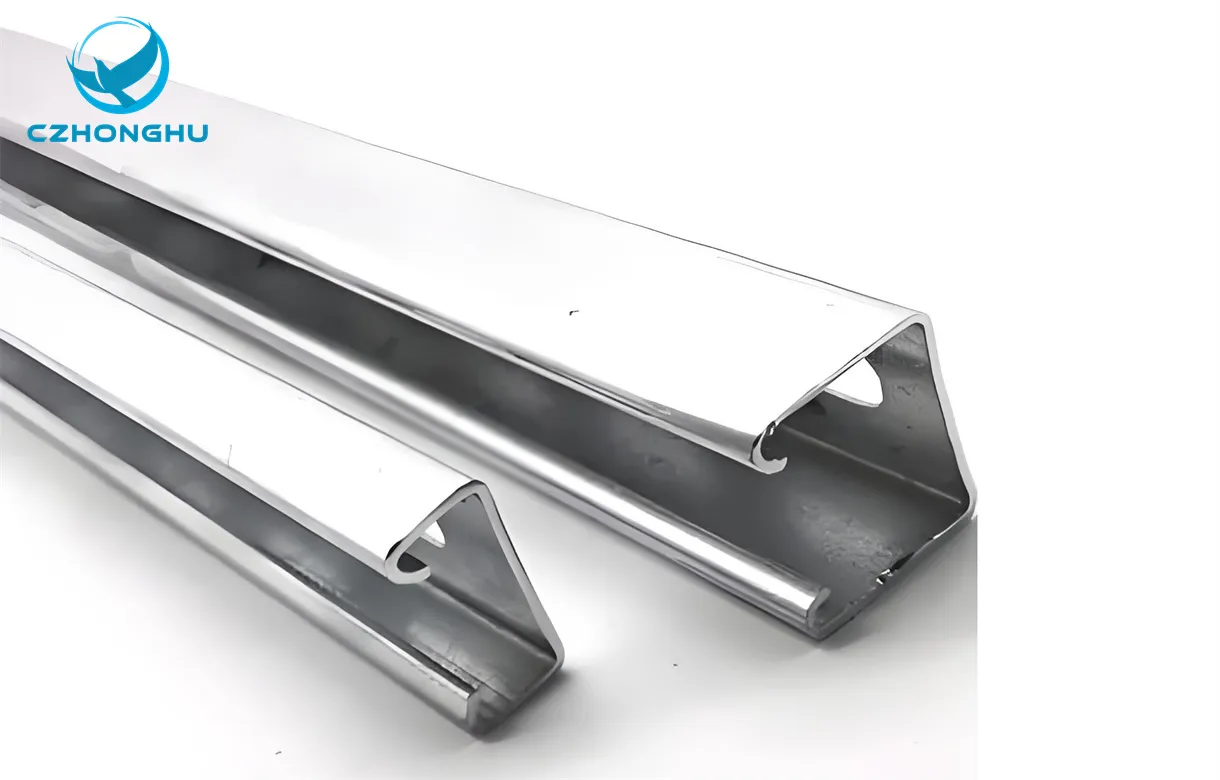

The HDG Strut Channel features a robust hot-dip galvanized coating, where steel is immersed in molten zinc to create a durable, abrasion-resistant protective layer.
This process creates a metallurgical bond, forming a superior barrier against environmental elements and physical damage during handling and installation.
It offers exceptional corrosion resistance, performing ideally in harsh environments like coastal areas, industrial settings, and wastewater treatment plants.
The zinc coating provides cathodic protection, sacrificially corroding to protect the underlying steel even if the surface gets scratched or damaged.
Its design features standardized shapes with regularly spaced holes, allowing flexible assembly and easy modifications for various support applications.
Despite higher initial cost, it ensures long-term cost-effectiveness through extended service life and reduced maintenance needs over decades of use.
