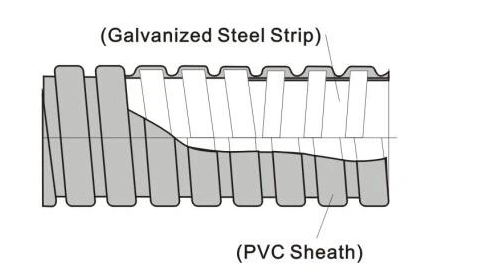

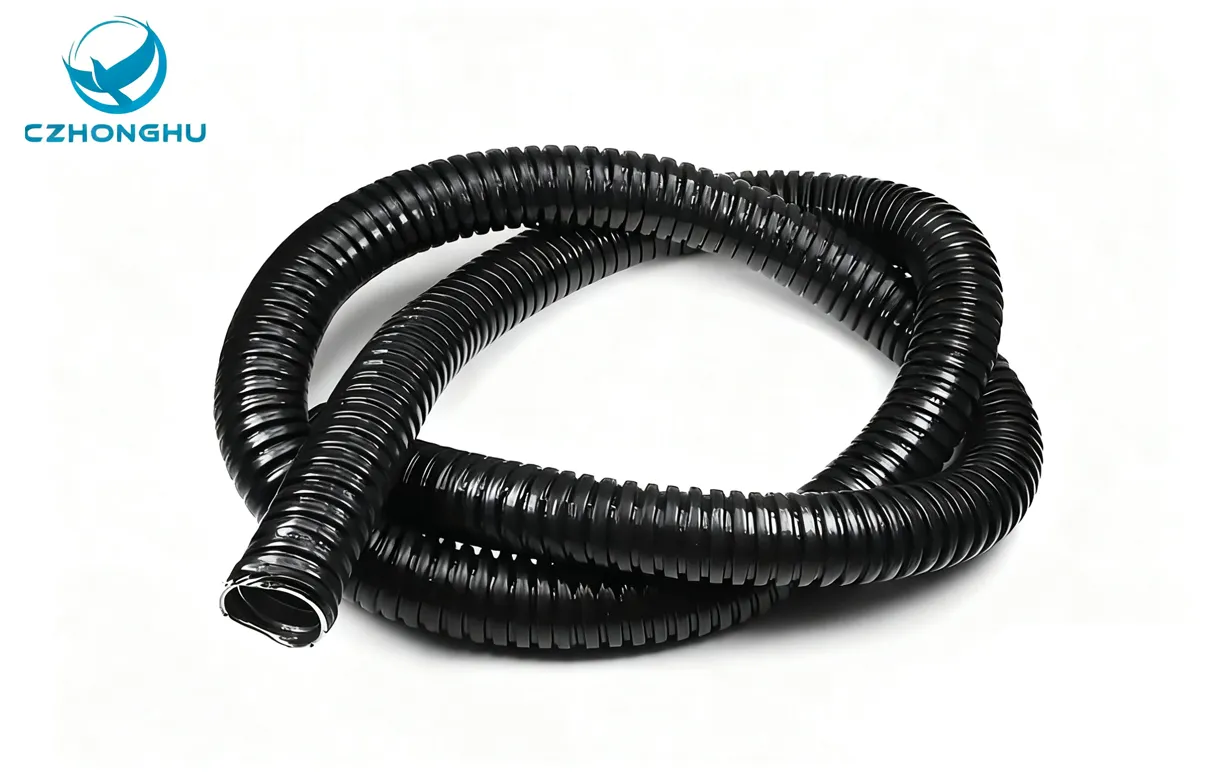

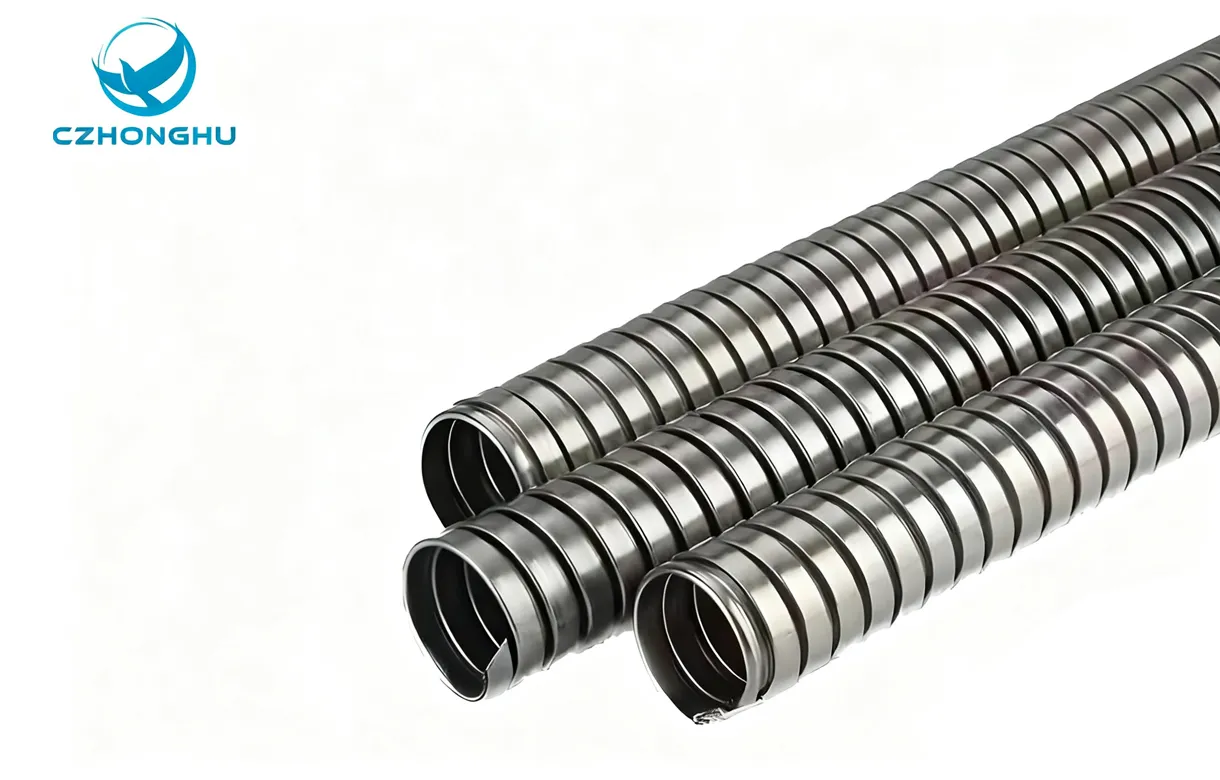

Liquid tight flexible conduit is a specialized protective tube, typically made of a flexible metal core (like galvanized steel) covered with a durable plastic (e.g., PVC) or rubber jacket. This design creates an impermeable barrier, preventing liquids, moisture, dust, and debris from entering—distinguishing it from standard flexible conduits.
The primary function of a liquid tight flexible conduit is to provide a sealed, durable pathway for electrical wiring in environments where exposure to liquids, vapors, or physical damage is a concern. It is commonly used in industrial settings, outdoor installations, and machinery where flexibility and environmental protection are critical. Its design ensures electrical safety by preventing liquid ingress and offering resistance to abrasion, chemicals, and corrosion.
| |||||||
| P/N | Trade size | INSIDE DIAMETER | m/roll | Bending Radius | Material | Colour | Bending |
| HHFC38 | 3/8" | 12 | 100 | 65 | GI strip/SST | Grey/Black | 50 |
| HHFC12 | 1/2" | 16 | 100 | 85 | GI strip/SST | Grey/Black | 65 |
| HHFC34 | 3/4" | 21 | 100 | 100 | GI strip/SST | Grey/Black | 75 |
| HHFC100 | 1" | 26.5 | 100 | 120 | GI strip/SST | Grey/Black | 100 |
| HHFC114 | 1-1/4" | 35 | 50 | 165 | GI strip/SST | Grey/Black | 125 |
| HHFC112 | 1-1/2" | 40 | 50 | 180 | GI strip/SST | Grey/Black | 150 |
| HHFC200 | 2 | 50.5 | 50 | 190 | GI strip/SST | Grey/Black | 175 |
| HHFC212 | 2-1/2" | 62 | 20 | 280 | GI strip/SST | Grey/Black | 200 |
| HHFC300 | 3" | 75 | 20 | 320 | GI strip/SST | Grey/Black | 225 |
| HHFC400 | 4" | 97 | 15 | 380 | GI strip/SST | Grey/Black | 275 |
The liquid tight flexible conduit features a smooth interior for easy wire pulling and a corrugated, flexible exterior for excellent bendability without kinking.
Its key advantage is a seamless, waterproof jacket that reliably prevents moisture and fluid ingress, protecting electrical systems in damp or wet locations.
A major feature is its robust construction, offering superior resistance to abrasion, chemicals, oils, and sunlight, ensuring long-term durability in harsh environments.
This liquid tight flexible conduit provides significant mechanical protection for cables against crushing, impact, and vibration, enhancing the safety and longevity of installations.
Its combination of flexibility and environmental sealing makes this specific liquid tight flexible conduit ideal for use in industrial machinery and outdoor applications.
The overall advantage is a versatile, all-in-one protective solution that simplifies installation and reduces maintenance costs over the system's entire service life.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
