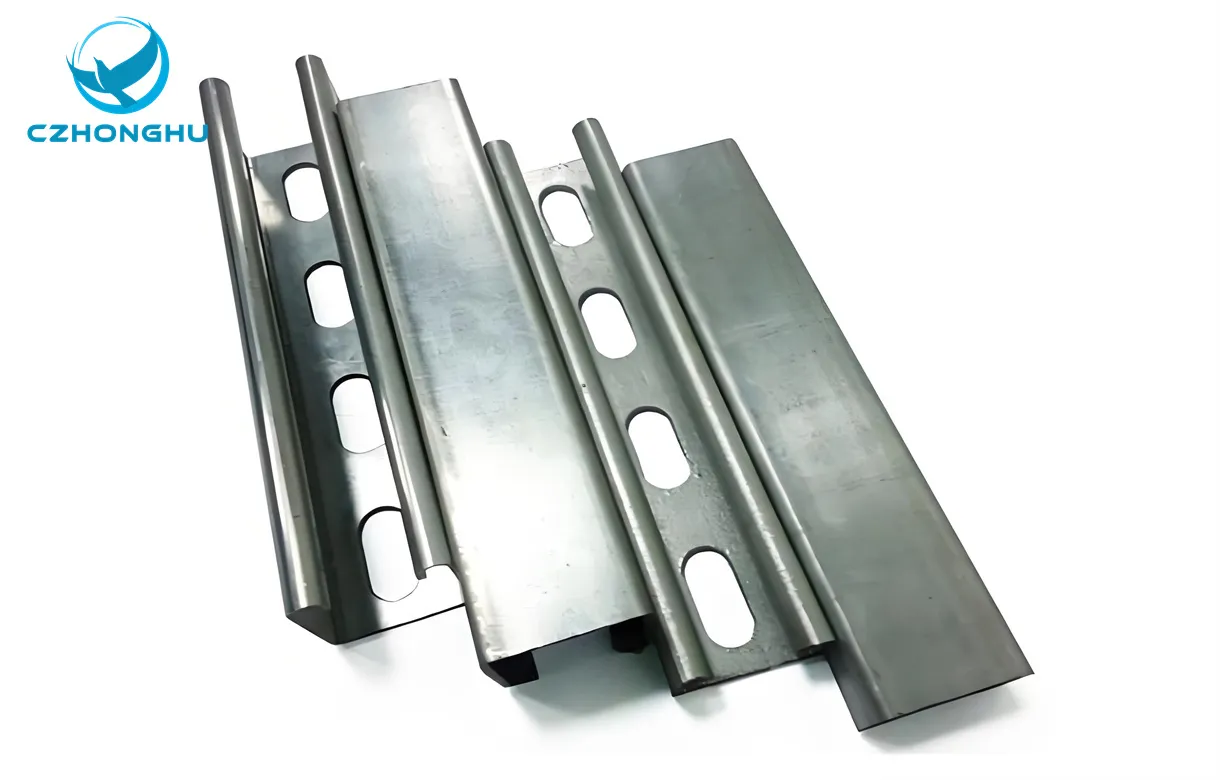

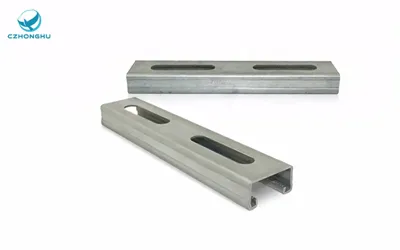

Metal strut channel is a prefabricated, roll-formed metal profile , U-shaped or C-shaped metal structure (typically made of steel, aluminum, etc.) with slotted holes for easy assembly. It serves as a versatile support framework in construction, electrical, and mechanical projects.
The core function of a metal strut channel is to securely mount, suspend, or brace components like pipes, cables, HVAC equipment, and electrical boxes. Its slotted design allows quick adjustments and connections with bolts, nuts, or brackets, eliminating the need for custom drilling. Widely used in commercial buildings and industrial settings, a metal strut channel ensures stable, adaptable support, reducing installation time and enhancing project flexibility.
| Item | P/N | Length | Size WXH | Hole Spacing Center to Center | Hole diameter | Thickness | Material | Finishes Option | Weight | Standard Pack |
| Slotted Strut channel | HHUC41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 2.9KG | 50pc/bundle |
| HHUC41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.2KG | 50pc/bundle | |||||
| HHUC41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 5.9KG | 50pc/bundle | |||||
| HHUC41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.4KG | 50pc/bundle | |||||
| HHUC41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 5.9KG | 50pc/bundle | |
| HHUC41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 8.8KG | 50pc/bundle | |||||
| HHUC41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 11.8KG | 50pc/bundle | |||||
| HHUC41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 14.7KG | 50pc/bundle | |||||
| Solid Strut Channel | HHUCP41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 3.1KG | 50pc/bundle |
| HHUCP41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.7KG | 50pc/bundle | |||||
| HHUCP41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 6.3KG | 50pc/bundle | |||||
| HHUCP41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.9KG | 50pc/bundle | |||||
| HHUCP41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 6.3KG | 50pc/bundle | |
| HHUCP41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 9.5KG | 50pc/bundle | |||||
| HHUCP41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 12.7KG | 50pc/bundle | |||||
| HHUCP41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 15.9KG | 50pc/bundle |

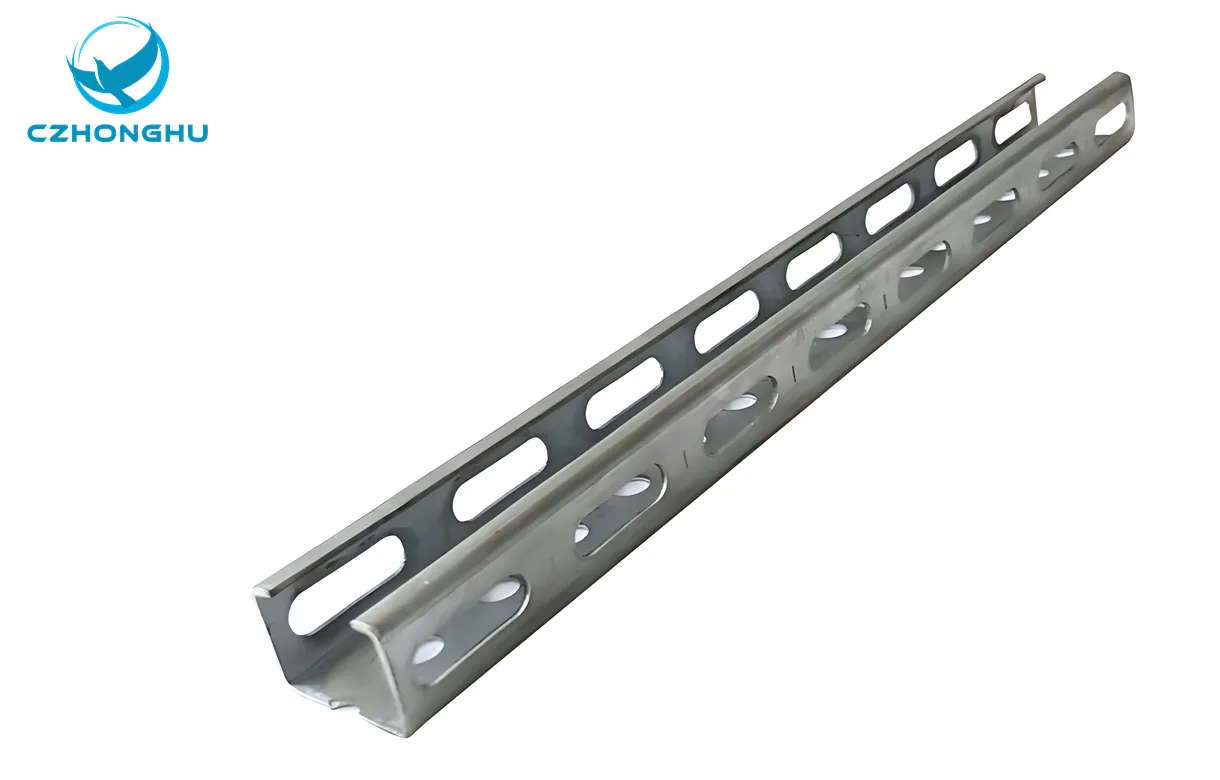

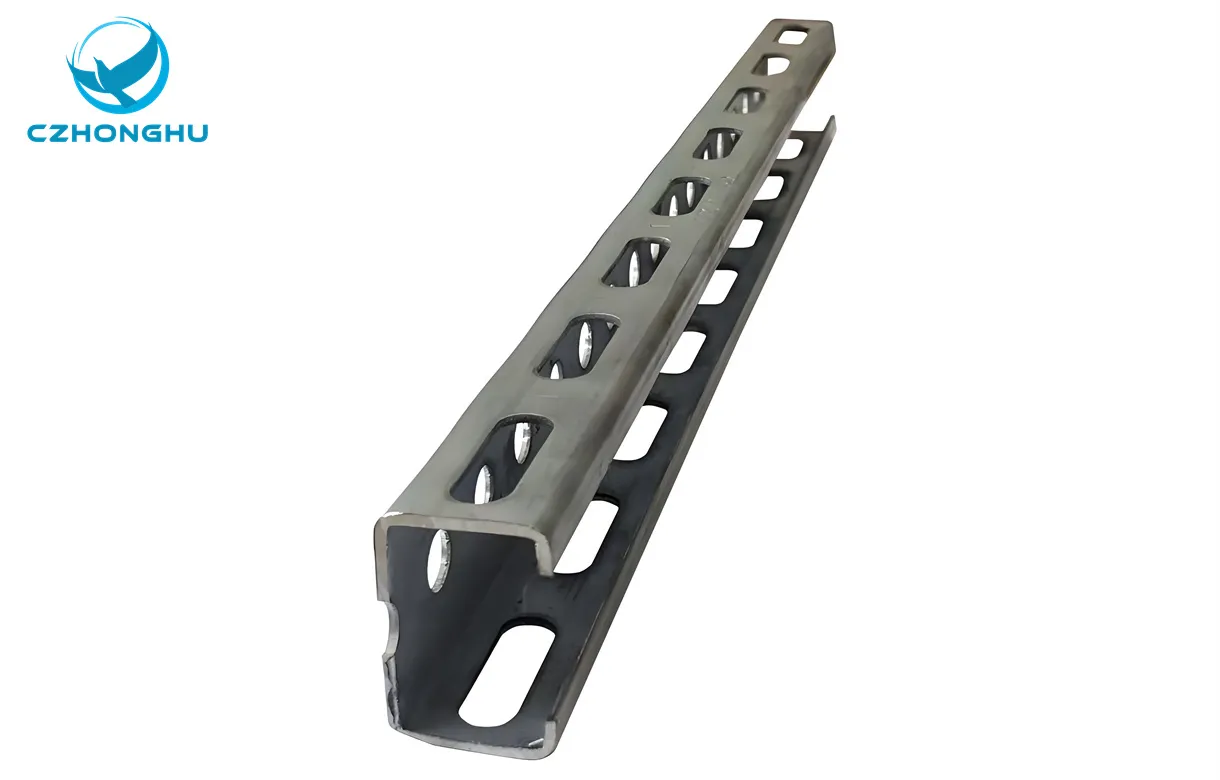

A metal strut channel is a U-shaped, slotted profile, commonly fabricated from durable and corrosion-resistant materials like galvanized steel, aluminum, or stainless steel for long-lasting performance in various environments.
Its most distinctive feature is the series of uniform slots along its sides, which are designed to allow for the completely adjustable positioning of all nuts, bolts, and connecting components without requiring any pre-drilling.
The system's true versatility is achieved through a vast ecosystem of compatible accessories, including specialized spring nuts, beam clamps, and brackets, which enable the creation of nearly any custom framework or support structure.
A significant advantage is its modularity and ease of assembly; the entire structure can be quickly put together, taken apart, and reconfigured using basic tools, saving considerable time and labor costs on installations and changes.
The metal strut channel provides a highly strong, flexible, and cost-effective support solution for a wide range of applications, from securing heavy electrical conduits and mechanical pipes to constructing industrial shelving and equipment racks.
