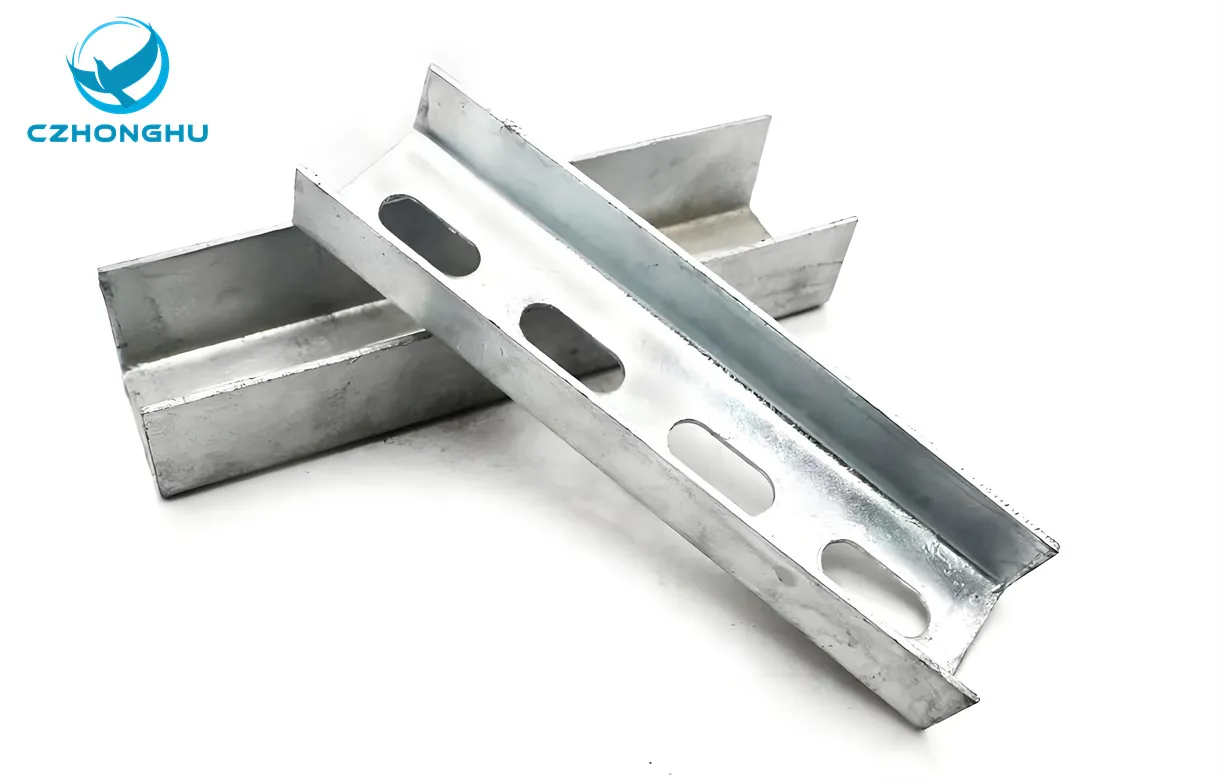

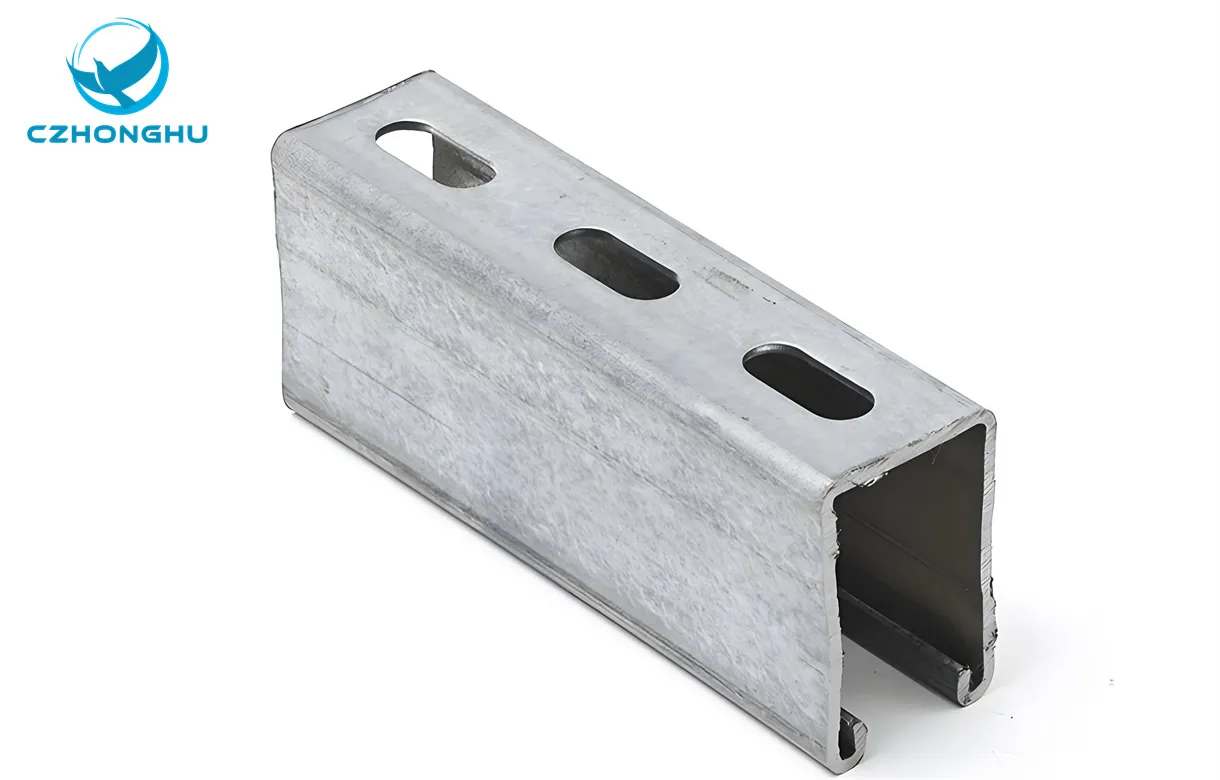

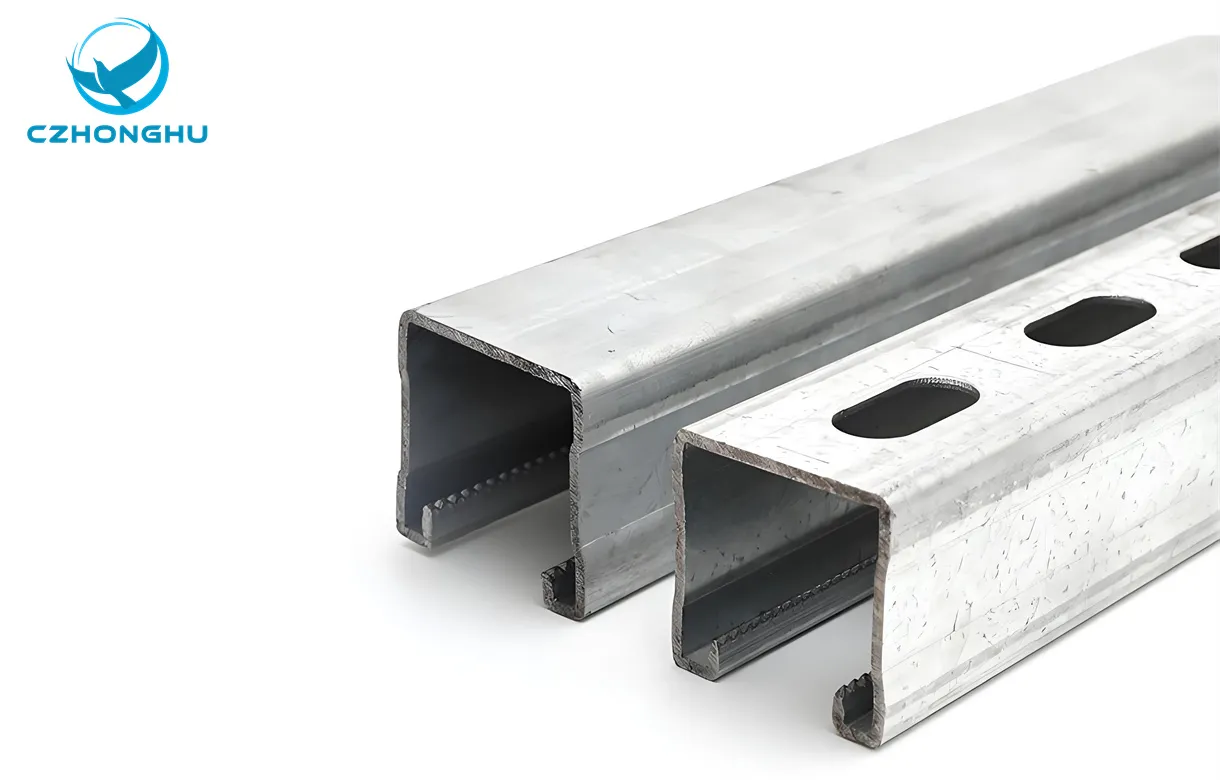

Pre-galvanized strut channel is a roll-formed, U-shaped steel support channel which receives a protective zinc coating through an electrochemical process before the steel is formed into its final shape. This coating provides a uniform protective layer against corrosion. Its primary function is to create a rigid, versatile framework for supporting electrical conduits, mechanical pipes, and other building services components.
The key advantage of a pre-galvanized strut channel is its cost-effectiveness for applications in indoor or non-severe environments where extreme corrosion resistance is not the primary concern. It features pre-punched holes for easy, tool-free assembly with bolts, nuts, and a wide array of compatible fittings, allowing for the quick construction of secure and organized support systems.
| Item | P/N | Length | Size WXH | Hole Spacing Center to Center | Hole diameter | Thickness | Material | Finishes Option | Weight | Standard Pack |

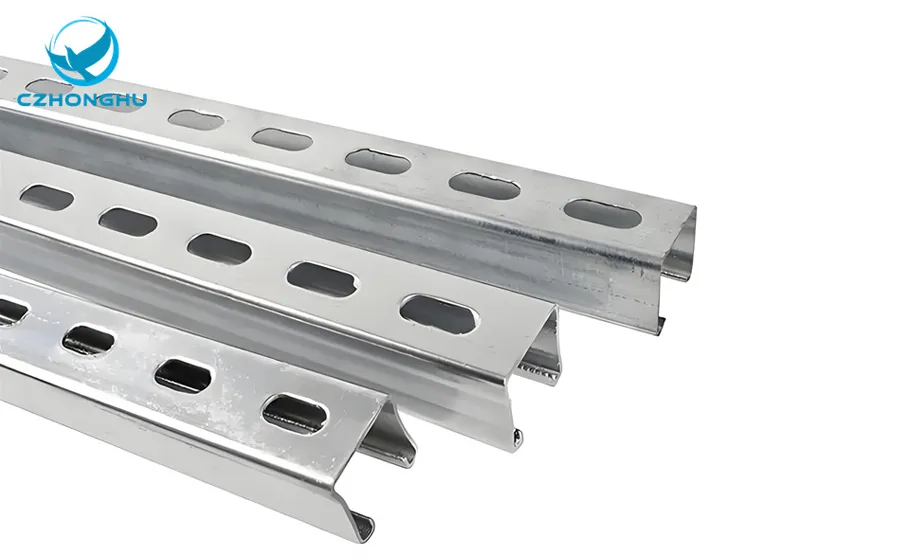

| Slotted Strut channel | HHUC41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 2.9KG | 50pc/bundle |
| HHUC41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.2KG | 50pc/bundle | |||||
| HHUC41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 5.9KG | 50pc/bundle | |||||
| HHUC41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.4KG | 50pc/bundle | |||||
| HHUC41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 5.9KG | 50pc/bundle | |
| HHUC41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 8.8KG | 50pc/bundle | |||||
| HHUC41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 11.8KG | 50pc/bundle | |||||
| HHUC41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 14.7KG | 50pc/bundle | |||||

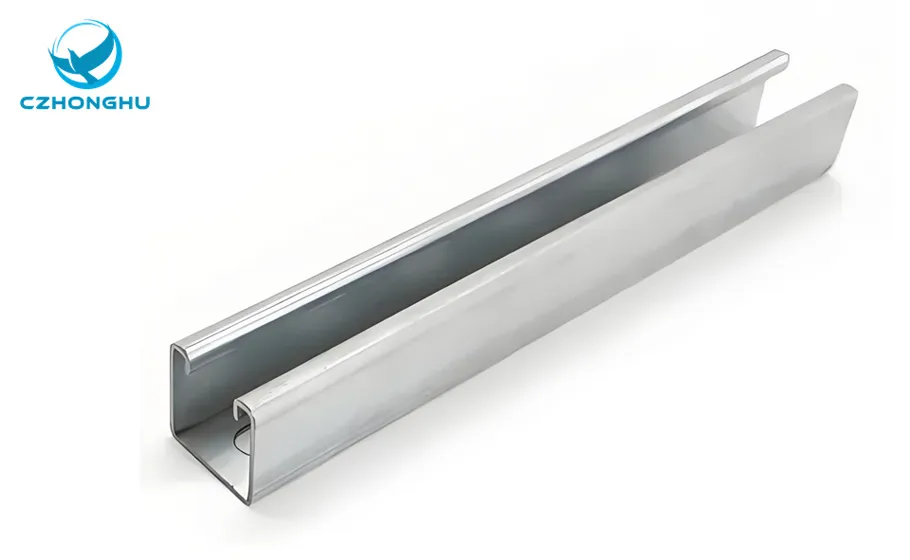

| Solid Strut Channel | HHUCP41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 3.1KG | 50pc/bundle |
| HHUCP41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.7KG | 50pc/bundle | |||||
| HHUCP41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 6.3KG | 50pc/bundle | |||||
| HHUCP41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.9KG | 50pc/bundle | |||||
| HHUCP41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 6.3KG | 50pc/bundle | |
| HHUCP41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 9.5KG | 50pc/bundle | |||||
| HHUCP41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 12.7KG | 50pc/bundle | |||||
| HHUCP41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 15.9KG | 50pc/bundle |
Superior Corrosion Resistance: Pre-galvanized strut channel offers exceptional rust protection due to its uniform zinc coating applied before forming. This layer thoroughly covers all surfaces, edges, and corners, effectively resisting moisture, chemicals, and environmental wear in diverse settings.
High Construction Efficiency: With pre-punched holes and no need for drilling or extra treatment, this channel allows rapid on-site assembly. It supports easy attachment of fittings and pipes using standard bolts and nuts, saving significant time and labor.
Strong Versatility: Its U-shape design accommodates various pipes and cables, and works with diverse accessories like tees and elbows. Suitable for electrical, mechanical, and plumbing supports, it adapts to horizontal, vertical, or curved layouts across multiple applications.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
