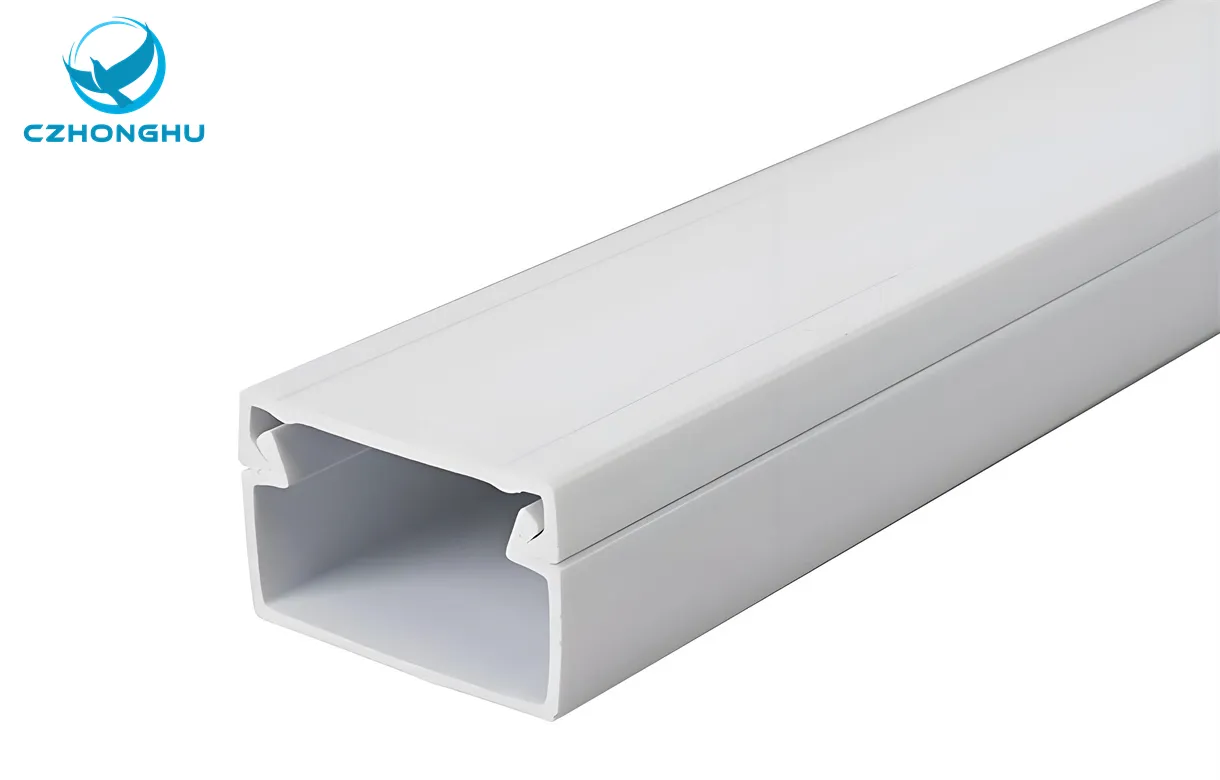

PVC cable trunking is a protective enclosure system, manufactured from Polyvinyl Chloride, designed to house, conceal, and manage electrical wires and cables. Its primary function is to provide a safe, organized, and accessible pathway for cables, protecting them from impact, moisture, dust, and other potential damage. This containment solution also helps prevent trip hazards and reduces the risk of fire by containing potential electrical faults.
The rigid yet lightweight nature of PVC cable trunking makes it easy to cut and install on walls or skirting boards. Furthermore, its non-conductive properties enhance electrical safety. For a neat and secure installation, PVC cable trunking is an essential component in both domestic and commercial settings, ensuring a tidy and professional finish for any electrical project.
| Type | P/N | Height | Width | Thickness | Length | fire-protection rating/standard | Material | Weight bearing |
| Half-round PVC trunking | 8-6 | 23-10 | 1m/2m | UL94-V0/Rohs | PVC | 1T | ||
| 10-8 | 33-14 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |||
| 13-10 | 45-23 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |||
| 13-10 | 45-22 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |||
| 19-15 | 68-51 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |||
| 23-20 | 80-59 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |||
| 29-25 | 92-69 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |||
| Square trunking-1 | 20*10 | 10 | 20 | 0.5 | 1m/2m | UL94-V0/Rohs | PVC | 1T |
| 24*14 | 14 | 24 | 0.6 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 30*15 | 15 | 30 | 0.8 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 39*19 | 19 | 39 | 0.8 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 50*25 | 25 | 50 | 1.0 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 59*22 | 22 | 59 | 1.0 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 60*40 | 40 | 60 | 1.4 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 80*40 | 40 | 80 | 1.4 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 100*40 | 40 | 100 | 1.4 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 100*50 | 50 | 100 | 1.4 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| 100*50 | 60 | 100 | 1.4 | 1m/2m | UL94-V0/Rohs | PVC | 1T | |
| Square trunking-2 | 20*10 | 0.6 | 1m/2m | UL94-V0/Rohs | PVC | |||
| 25*13 | 0.7 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 30*15 | 0.8 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 40*25 | 1 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 50*25 | 1.1 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 60*30 | 1.3 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 80*50 | 1.4 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 100*50 | 1.5 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 100*80 | 1.8 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 100*100 | 2 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 120*80 | 2 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 160*100 | 2.5 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 200*100 | 2.8 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 200*160 | 2.5 | 1m/2m | UL94-V0/Rohs | PVC | ||||
| 300*150 | 4 | 1m/2m | UL94-V0/Rohs | PVC |
Being inherently non-conductive, PVC cable trunking provides excellent electrical insulation, significantly enhancing protection against potential short circuits and electrical faults.
It effectively repels moisture, dust, and resists many oils, acids, and alkalis, making it suitable for use in demanding or humid environments.
The material is very lightweight and can be easily cut to size, simplifying the handling and installation process for any electrician.
PVC cable trunking neatly conceals and organises loose wires, while remaining easily accessible for future maintenance, upgrades, or cable additions.
It is an extremely economical cable management solution, offering a superior blend of protective features and performance at a very competitive price point.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
