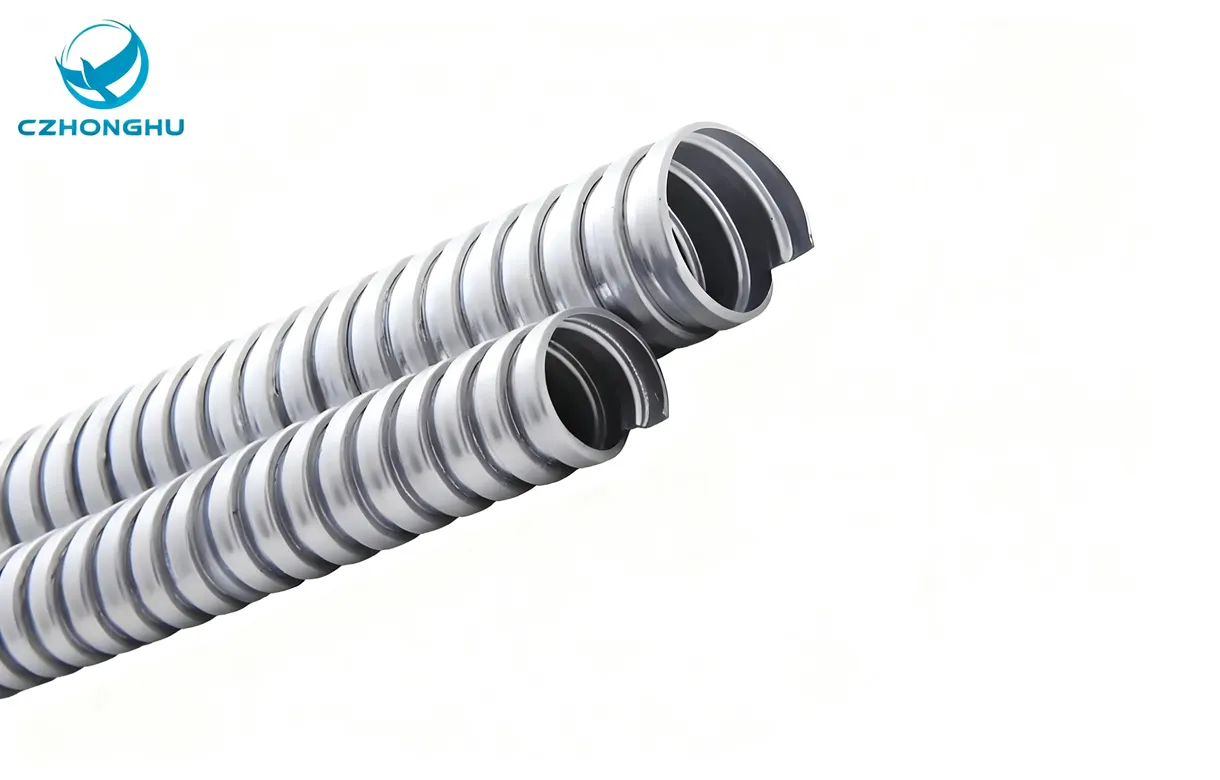

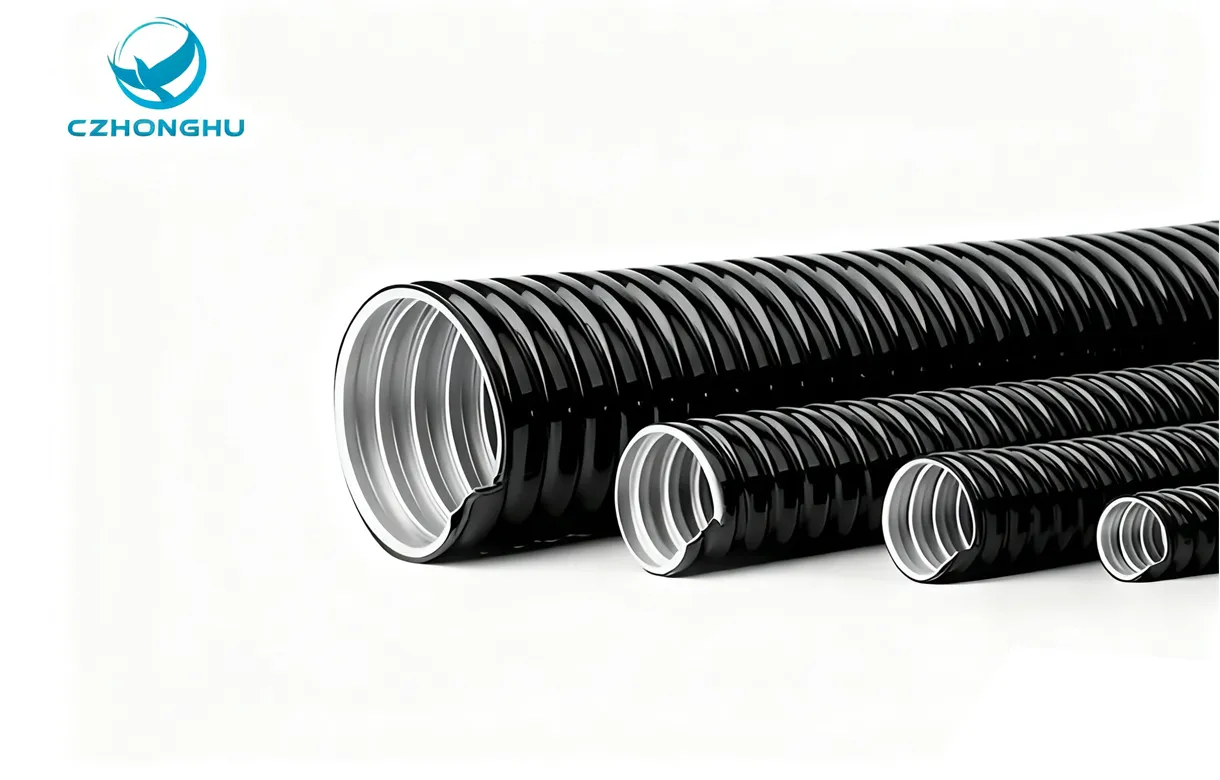

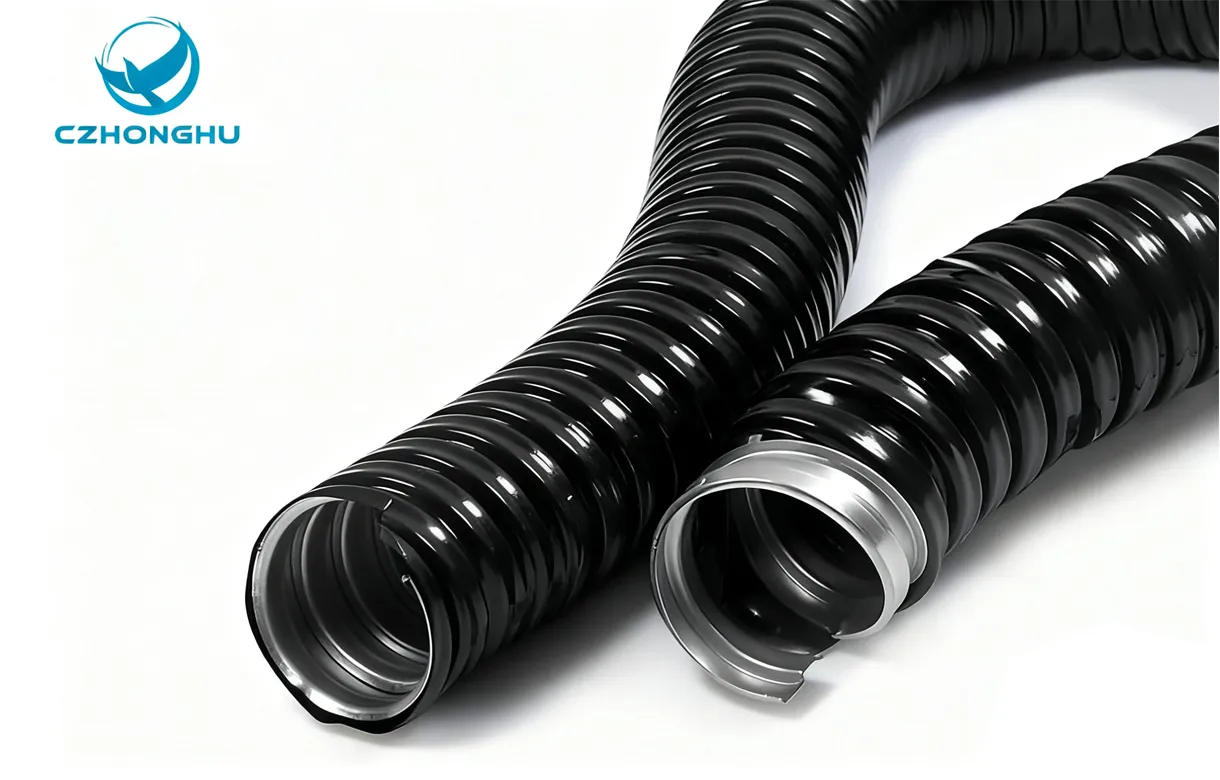

PVC coated galvanized flexible conduit is a versatile protective raceway for electrical cables. It consists of a core made from galvanized steel, forming a flexible, corrugated tube that is then sheathed in a durable polyvinyl chloride (PVC) jacket. The primary function of this PVC coated galvanized flexible conduit is to provide superior mechanical protection and environmental resistance.
It safeguards wiring from physical damage, moisture, liquids, chemicals, oils, and abrasion. This combination makes it ideal for demanding applications in industrial settings, data centers, and outdoor equipment where both flexibility and maximum corrosion resistance are essential.
| |||||||
| P/N | Trade size | INSIDE DIAMETER | m/roll | Bending Radius | Material | Colour | Bending |
| HHFC38 | 3/8" | 12 | 100 | 65 | GI strip/SST | Grey/Black | 50 |
| HHFC12 | 1/2" | 16 | 100 | 85 | GI strip/SST | Grey/Black | 65 |
| HHFC34 | 3/4" | 21 | 100 | 100 | GI strip/SST | Grey/Black | 75 |
| HHFC100 | 1" | 26.5 | 100 | 120 | GI strip/SST | Grey/Black | 100 |
| HHFC114 | 1-1/4" | 35 | 50 | 165 | GI strip/SST | Grey/Black | 125 |
| HHFC112 | 1-1/2" | 40 | 50 | 180 | GI strip/SST | Grey/Black | 150 |
| HHFC200 | 2 | 50.5 | 50 | 190 | GI strip/SST | Grey/Black | 175 |
| HHFC212 | 2-1/2" | 62 | 20 | 280 | GI strip/SST | Grey/Black | 200 |
| HHFC300 | 3" | 75 | 20 | 320 | GI strip/SST | Grey/Black | 225 |
| HHFC400 | 4" | 97 | 15 | 380 | GI strip/SST | Grey/Black | 275 |

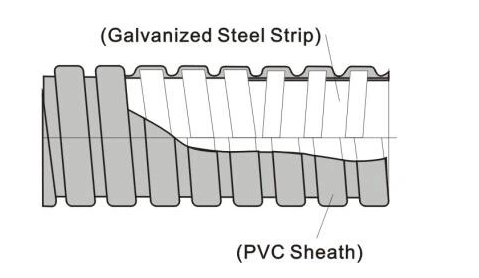

The PVC coated galvanized flexible conduit features a corrugated galvanized steel core for high tensile strength and exceptional flexibility, allowing for easy installation around obstacles.
Its primary advantage is ultimate corrosion resistance, combining the zinc barrier of galvanization with the complete environmental seal of the tough, waterproof outer PVC jacket.
This specific PVC coated galvanized flexible conduit offers excellent resistance to abrasion, chemicals, oils, and sunlight, ensuring longevity in harsh indoor and outdoor settings.
A key feature is its ability to protect electrical cables from moisture ingress, physical impact, crushing, and vibration, enhancing overall system safety and reliability.
The flexibility and durability of this PVC coated galvanized flexible conduit make it a superior choice for industrial machinery, wastewater treatment plants, and agricultural applications.
Its main advantage is providing a long-service-life, low-maintenance solution that withstands the most demanding environments, reducing replacement costs and downtime.
