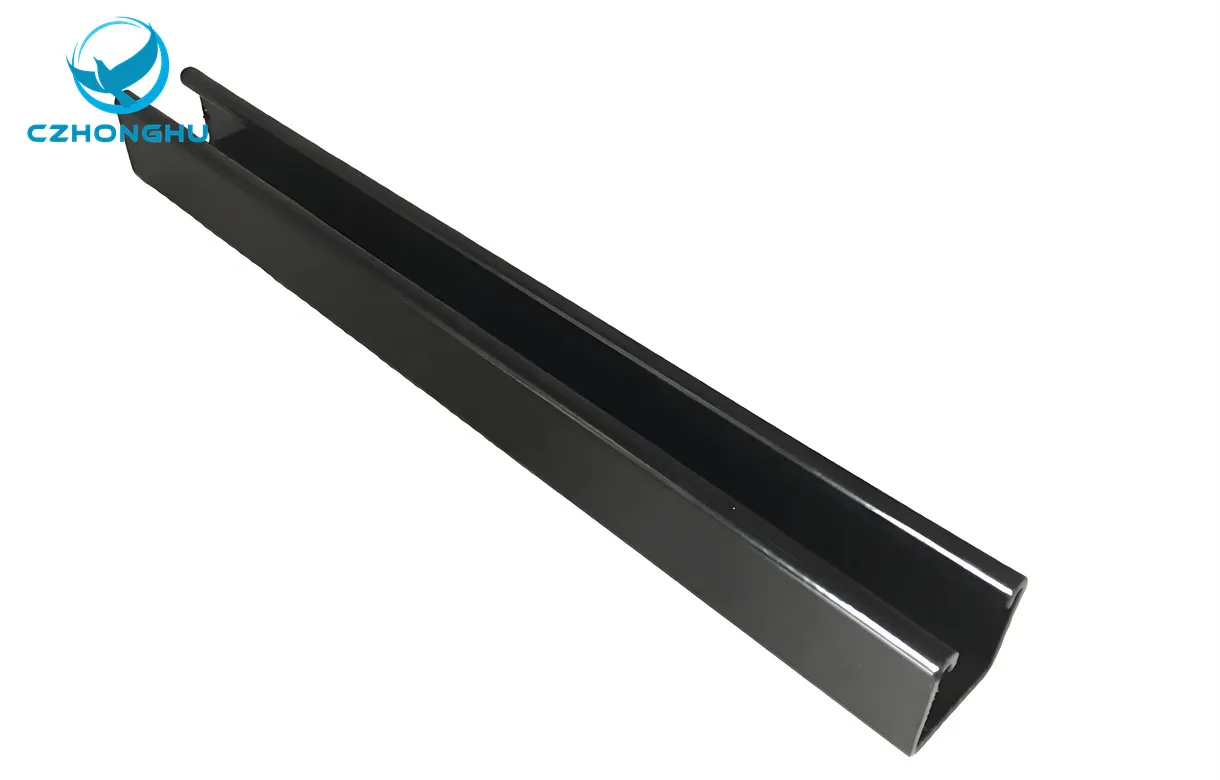

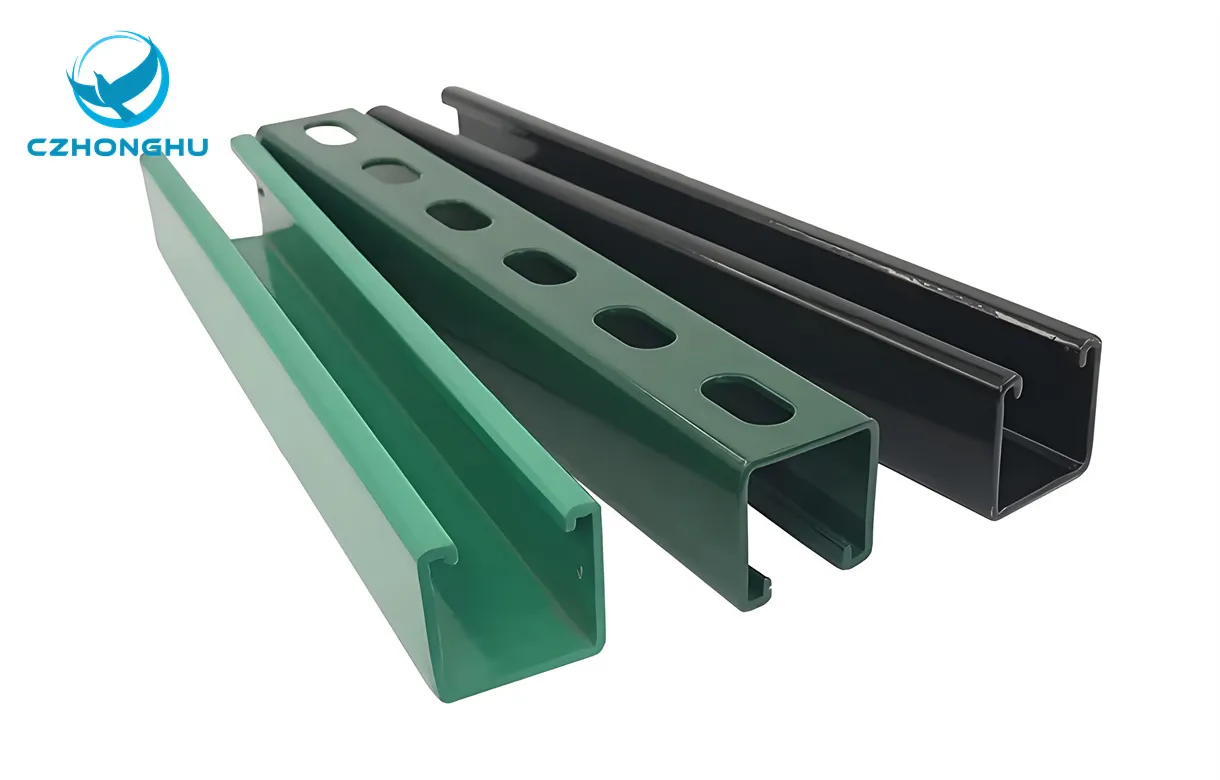

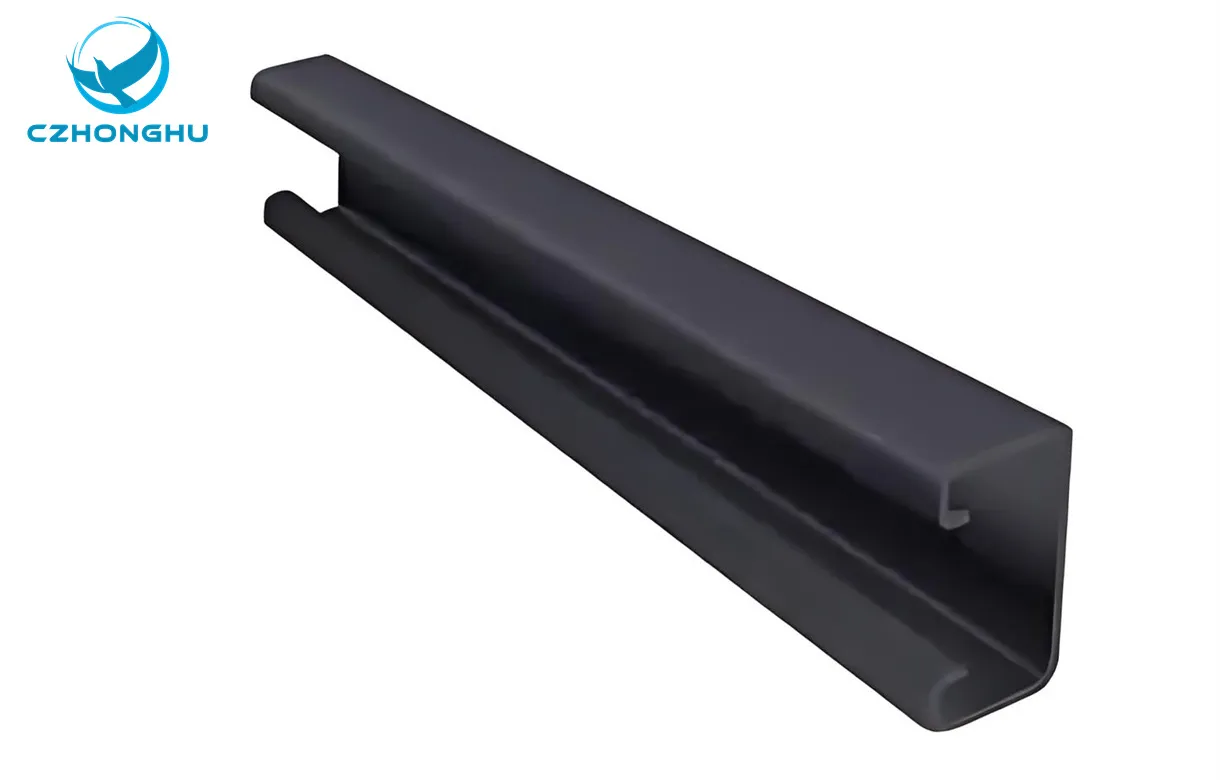

PVC Coated strut channel is a fundamental support component crafted from either galvanized steel or aluminum, which is then fully encased in a durable polyvinyl chloride (PVC) layer. This robust external jacket acts as a protective barrier, effectively shielding the underlying metal from a host of damaging elements. It provides excellent resistance against corrosion from moisture and chemicals, protects from physical abrasion, and prevents the formation of rust.
The primary function of the PVC Coated strut channel is to create a strong, modular framework for supporting and organizing essential building services. It is routinely used to route and secure electrical conduit, cable trays, and various mechanical pipes or HVAC ducts.
| Item | P/N | Length | Size WXH | Hole Spacing Center to Center | Hole diameter | Thickness | Material | Finishes Option | Weight | Standard Pack |
| Slotted Strut channel | HHUC41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 2.9KG | 50pc/bundle |
| HHUC41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.2KG | 50pc/bundle | |||||
| HHUC41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 5.9KG | 50pc/bundle | |||||
| HHUC41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.4KG | 50pc/bundle | |||||
| HHUC41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 5.9KG | 50pc/bundle | |
| HHUC41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 8.8KG | 50pc/bundle | |||||
| HHUC41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 11.8KG | 50pc/bundle | |||||
| HHUC41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 14.7KG | 50pc/bundle | |||||
| Solid Strut Channel | HHUCP41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 3.1KG | 50pc/bundle |
| HHUCP41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.7KG | 50pc/bundle | |||||
| HHUCP41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 6.3KG | 50pc/bundle | |||||
| HHUCP41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.9KG | 50pc/bundle | |||||
| HHUCP41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 6.3KG | 50pc/bundle | |
| HHUCP41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 9.5KG | 50pc/bundle | |||||
| HHUCP41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 12.7KG | 50pc/bundle | |||||
| HHUCP41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 15.9KG | 50pc/bundle |
PVC coated strut channels feature a metal core with a seamless PVC layer, applied through specialized processes for full, durable coverage against harsh elements.
They resist chipping and cracking across a wide temperature range while maintaining the standard structural profile for full accessory compatibility.
A key feature is their customizable aesthetic, available in various colors and finishes to meet both functional and architectural design requirements.
Their primary advantage is exceptional corrosion resistance, making them ideal for outdoor, marine, and chemically aggressive indoor environments.
They significantly reduce long-term maintenance costs by eliminating the need for painting or touch-ups, thereby extending service life.
Additional benefits include enhanced electrical insulation for safety and improved scratch resistance for durability during installation and use.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
