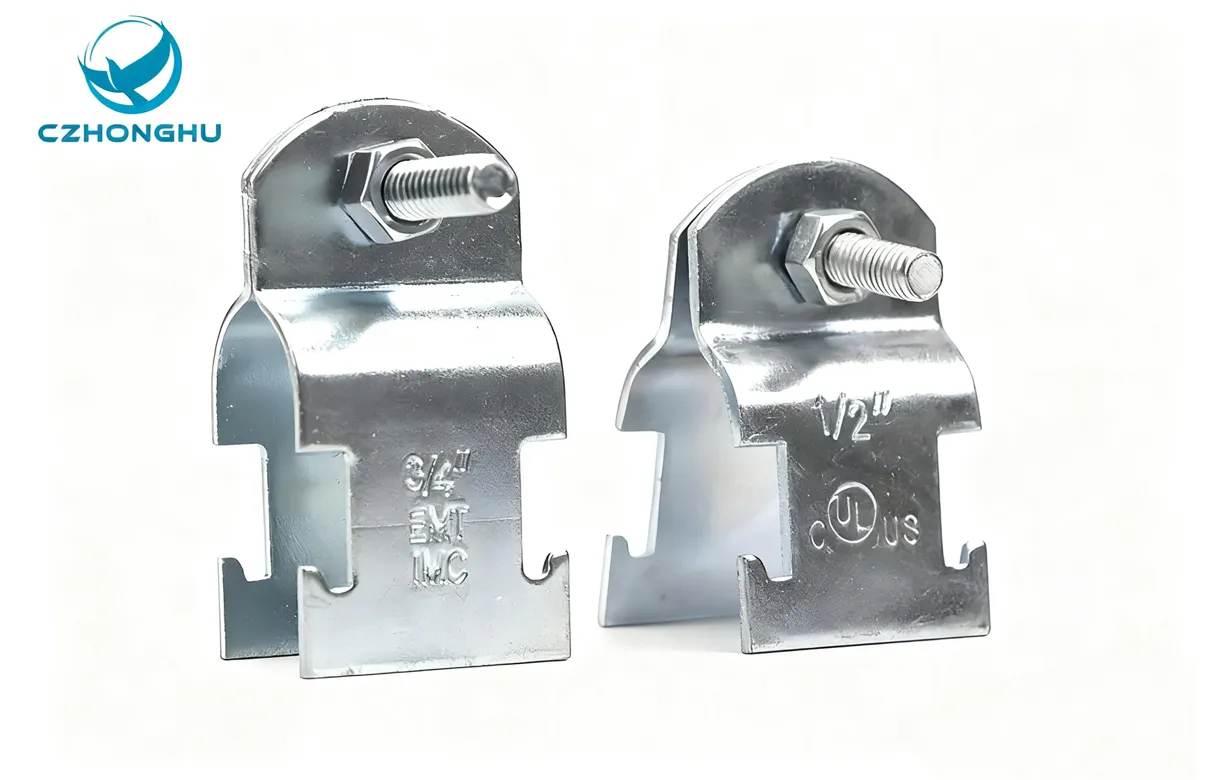

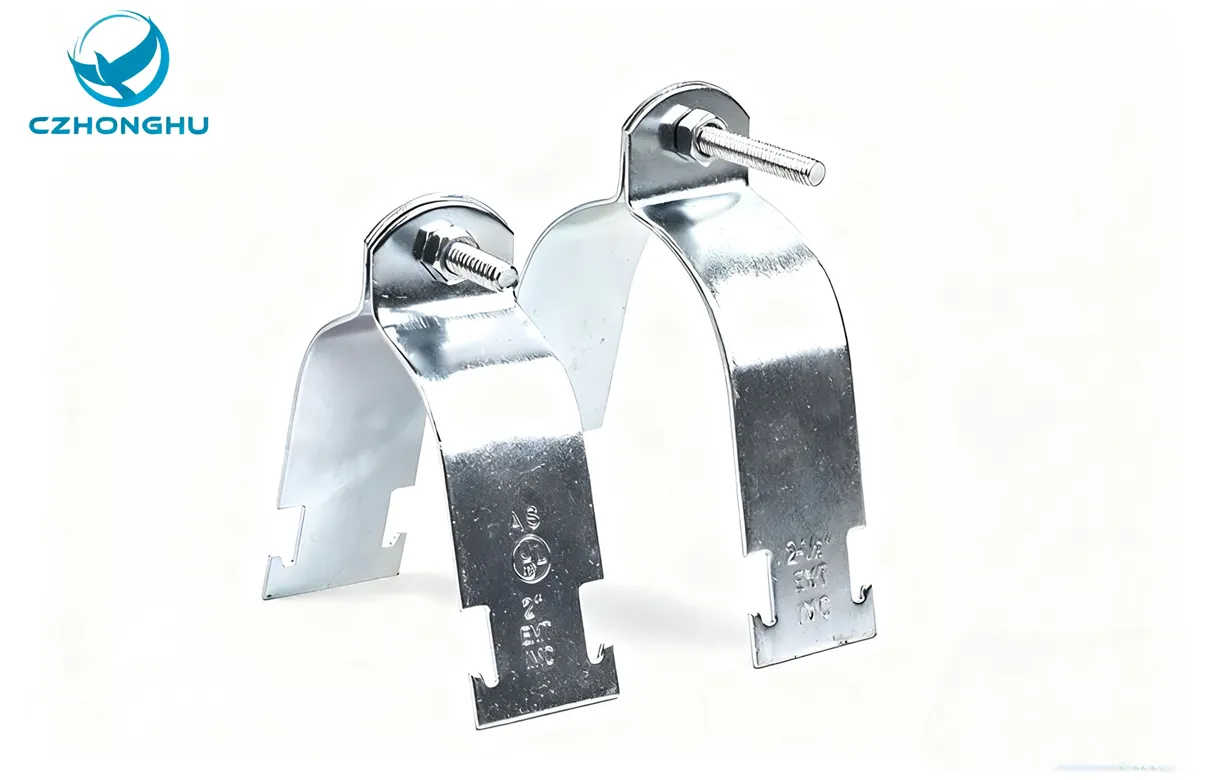

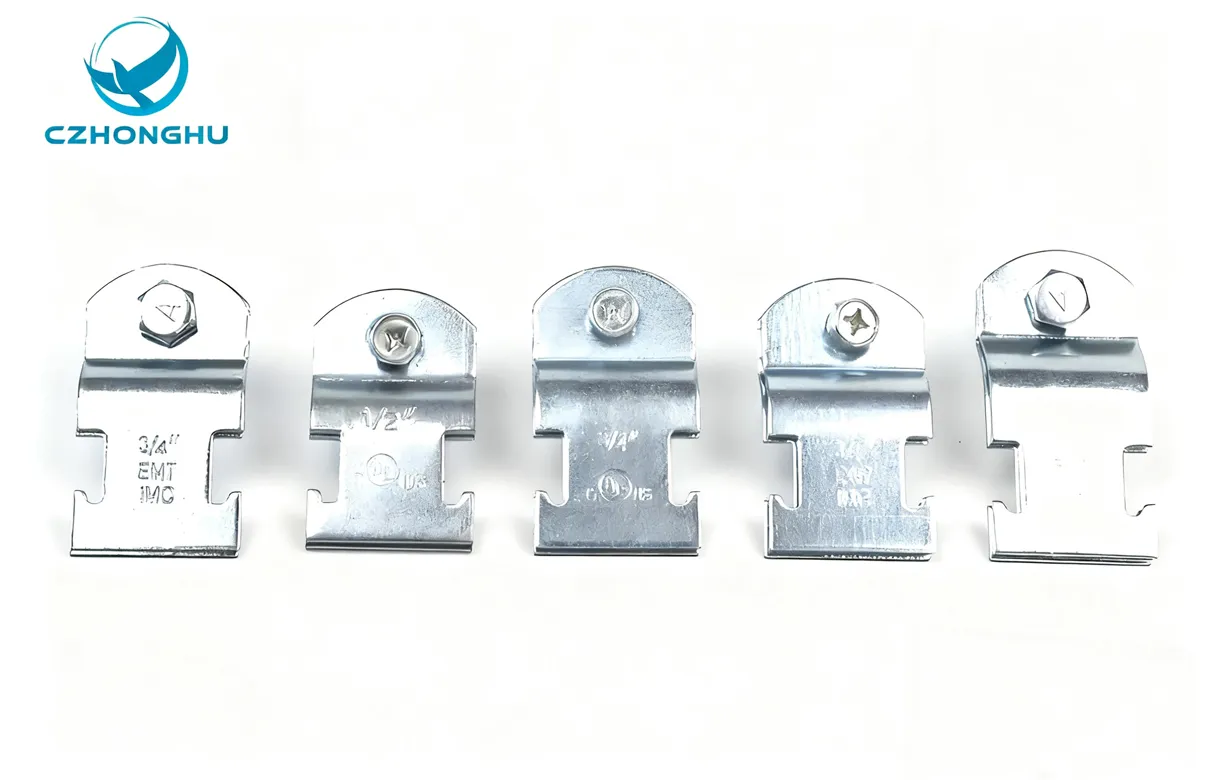

Rigid Conduit Clamp is a hardware device designed to securely fasten and support rigid metal conduit (RMC) or intermediate metal conduit (IMC) to walls, ceilings, or other structural surfaces.
Its primary function is to anchor the rigid pipe, preventing movement, sagging, or damage to the electrical wires housed inside. This ensures the integrity and safety of the electrical installation by maintaining proper support as mandated by electrical codes.
Typically constructed from robust, corrosion-resistant materials like galvanized steel or malleable iron, a Rigid Conduit Clamp often features a two-piece, U-bolt, or beam-style design for maximum grip and stability.
The Rigid Conduit Clamp works by securing rigid electrical conduits to surfaces like walls or ceilings. It has a clamping body that wraps around the conduit and a mounting base for attaching to the surface.
Fasteners (e.g., screws) through the clamp’s holes are tightened: this compresses the clamping body, creating firm friction against the conduit. The friction prevents conduit movement from vibration or external force, keeping the conduit aligned and protecting internal wires, ensuring stable electrical system operation.
| length | hole diameter | Thickness | Specification | Surface Treatment | pcs/ctn | KG/CTN | CTN Size |
| 52 mm | 1/4 | 1.20 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 350 | 12.84 | 28*21*14 |
| 60 mm | 1/4 | 1.50 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 250 | 13 | 28*21*14 |
| 68 mm | 1/4 | 1.50 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 200 | 11.26 | 28*21*14 |
| 75 mm | 1/4 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 150 | 10.14 | 28*21*14 |
| 84 mm | 1/4 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 150 | 10.97 | 28*21*14 |
| 97 mm | 1/4 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 100 | 8.5 | 28*21*14 |
| 123 mm | 1/4 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 60 | 8.38 | 28*21*14 |
| 140 mm | 1/4 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 50 | 7.92 | 28*21*14 |
| 162 mm | 1/4 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 50 | 11.76 | 28*21*14 |
| 215 mm | 1/4 | 1.90 | SAE J-429 | Blue Zinc Plated- 3-5 µ | 30 | 12.5 | 28*21*14 |
Constructed from galvanized steel or iron, a rigid conduit clamp offers exceptional strength and long-lasting corrosion resistance for demanding industrial and commercial electrical installations.
Its robust, two-piece or U-bolt design provides a powerful, vice-like grip on the conduit, effectively preventing any slippage, movement, or sagging over time.
A key advantage is the enhanced safety it provides, protecting the enclosed wiring from pinch points, abrasion, and damage due to unintended vibration or shifts.
The correct rigid conduit clamp simplifies maintenance and future system modifications by providing secure, predictable, and accessible routing of the conduit runs.
By firmly anchoring the raceway, this rigid conduit clamp ensures full compliance with strict NEC codes regarding conduit support spacing and installation integrity.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
