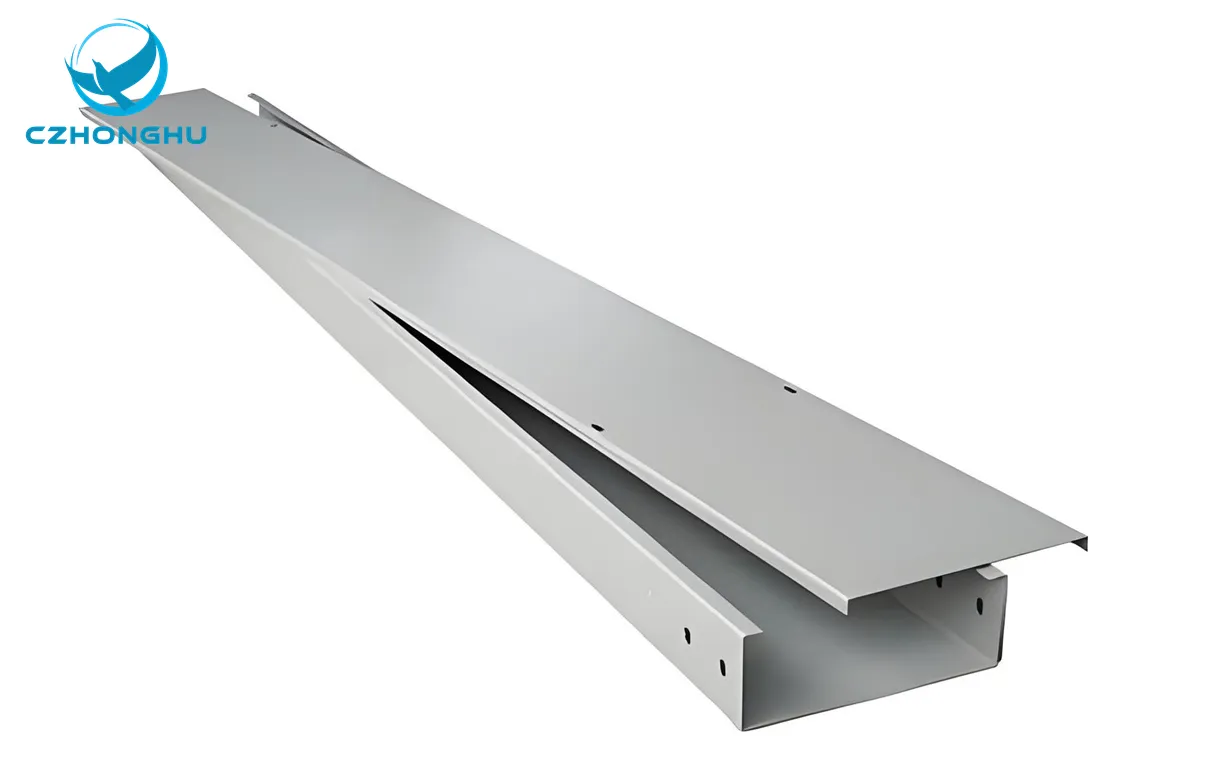

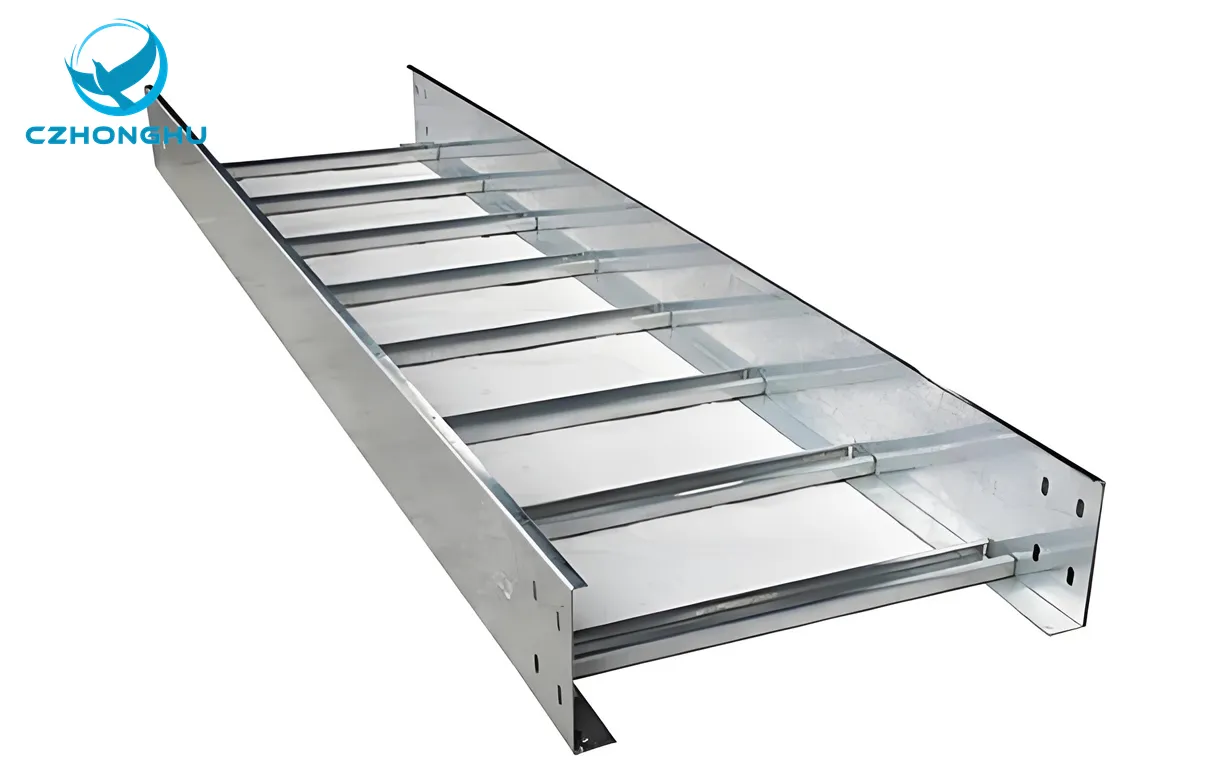

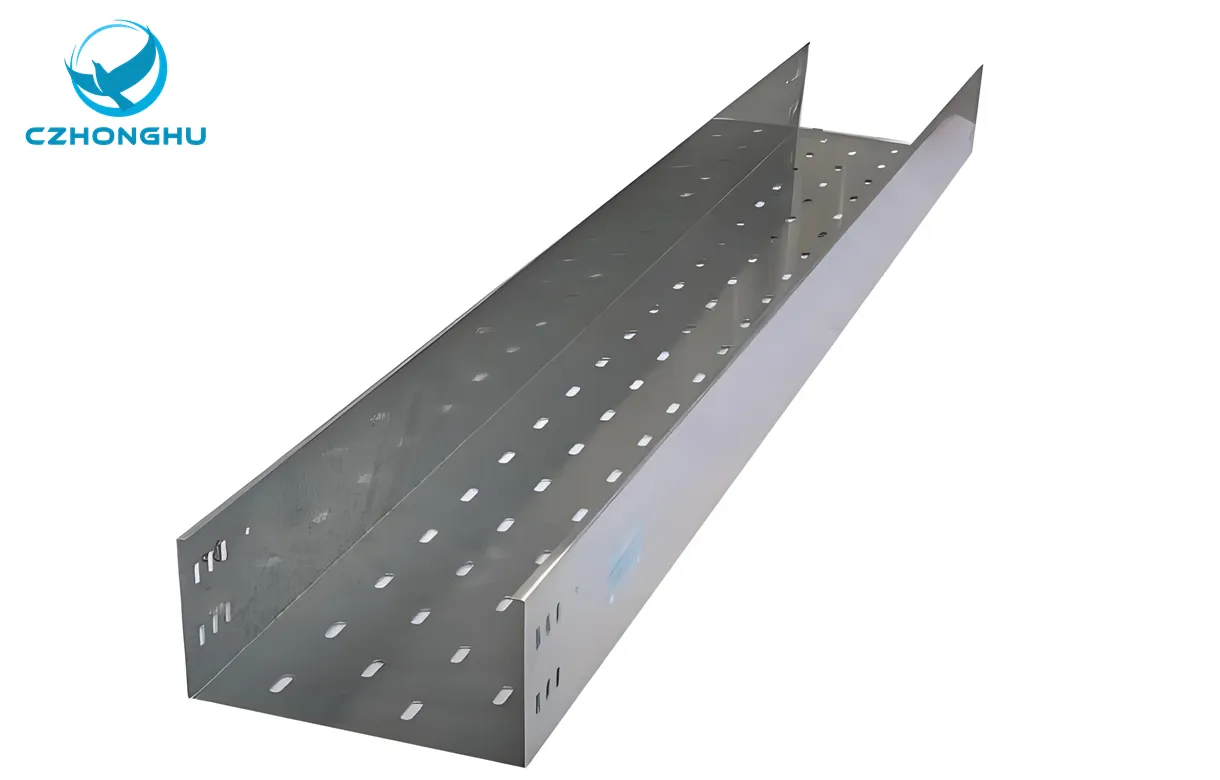

Solar cable tray is a specialized support system, typically a rigid, ladder-like structure, designed to securely manage and organize the extensive wiring and cables within a solar power installation. Its primary function is to provide a safe, elevated pathway for electrical cables running from the photovoltaic (PV) panels to the inverters and combiner boxes. This protects the cables from potential physical damage, environmental wear, and rodent interference, while also preventing tripping hazards and simplifying maintenance.
The core function of a solar cable tray is to ensure safe, efficient cable management: it shields cables from harsh outdoor elements (UV, rain, temperature swings) and mechanical stress, reducing short-circuit risks. Additionally, it simplifies maintenance by keeping cables neatly arranged, making inspections or repairs easier. Without a solar cable tray, solar system cables may be exposed, lowering reliability and lifespan.
| Type | P/N | Height | Width | Thickness | Length | surface |
| Perforated Cable Tray/Solid Cable Tray | HHCTP450 | 40 | 50 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL |
| HHCTP4100 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP550 | 50 | 50 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | |
| HHCTP5100 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6100 | 60 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | |
| HHCTP6150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7100 | 75 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | |
| HHCTP7150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP1010 | 100 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | |
| HHCTP10150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL |
Solar cable tray is a key component in photovoltaic systems, made to hold and route cables. This solar cable tray keeps solar panel-connected cables organized, ensuring the solar cable tray avoids messy tangles.
Outdoors, a solar cable tray shields cables from UV, rain, and heat. The durable solar cable tray resists damage, so the solar cable tray boosts cable lifespan in harsh solar environments.
For solar system maintenance, a solar cable tray arranges cables clearly. This solar cable tray lets workers find issues fast, making the solar cable tray vital for easy upkeep.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
