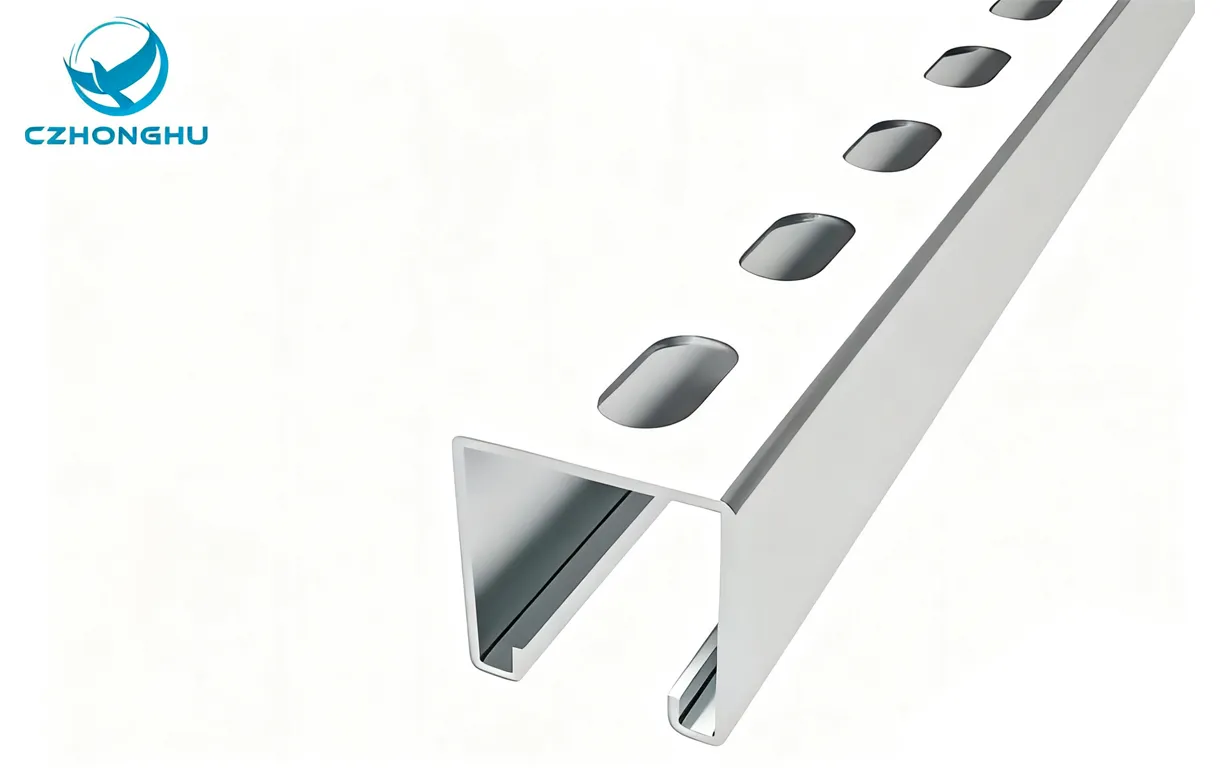

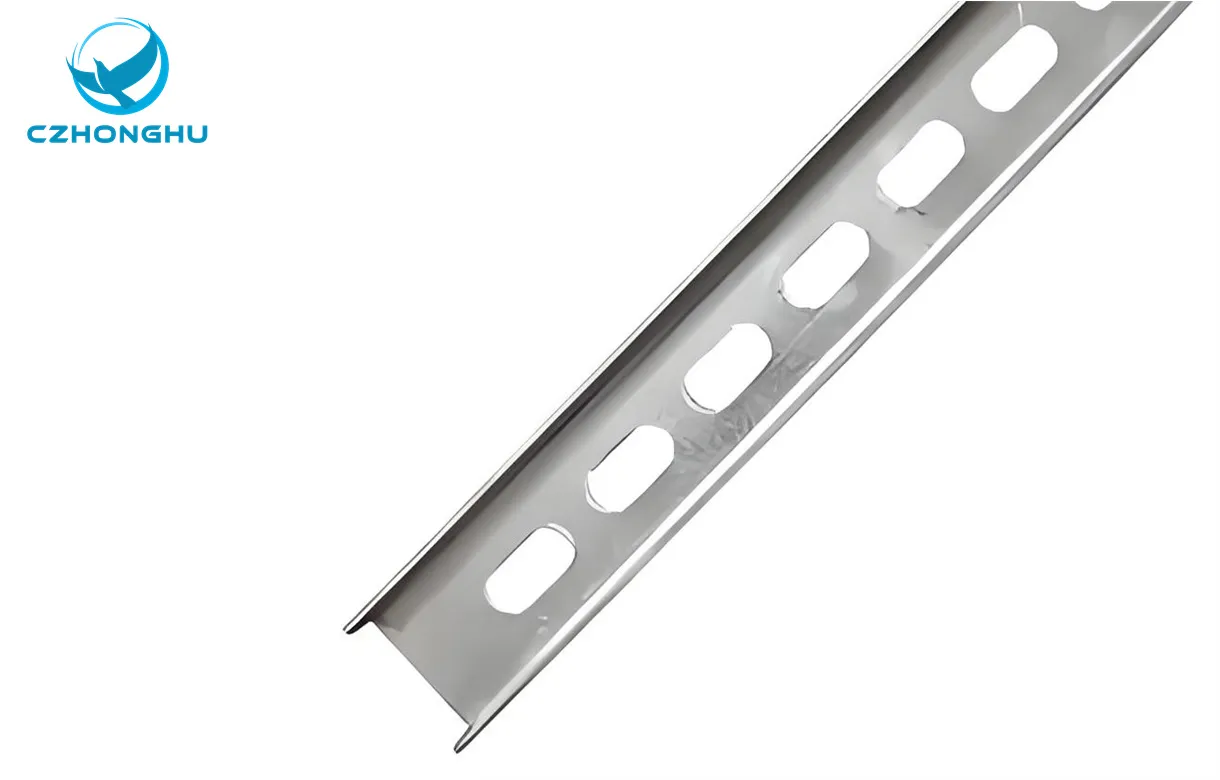

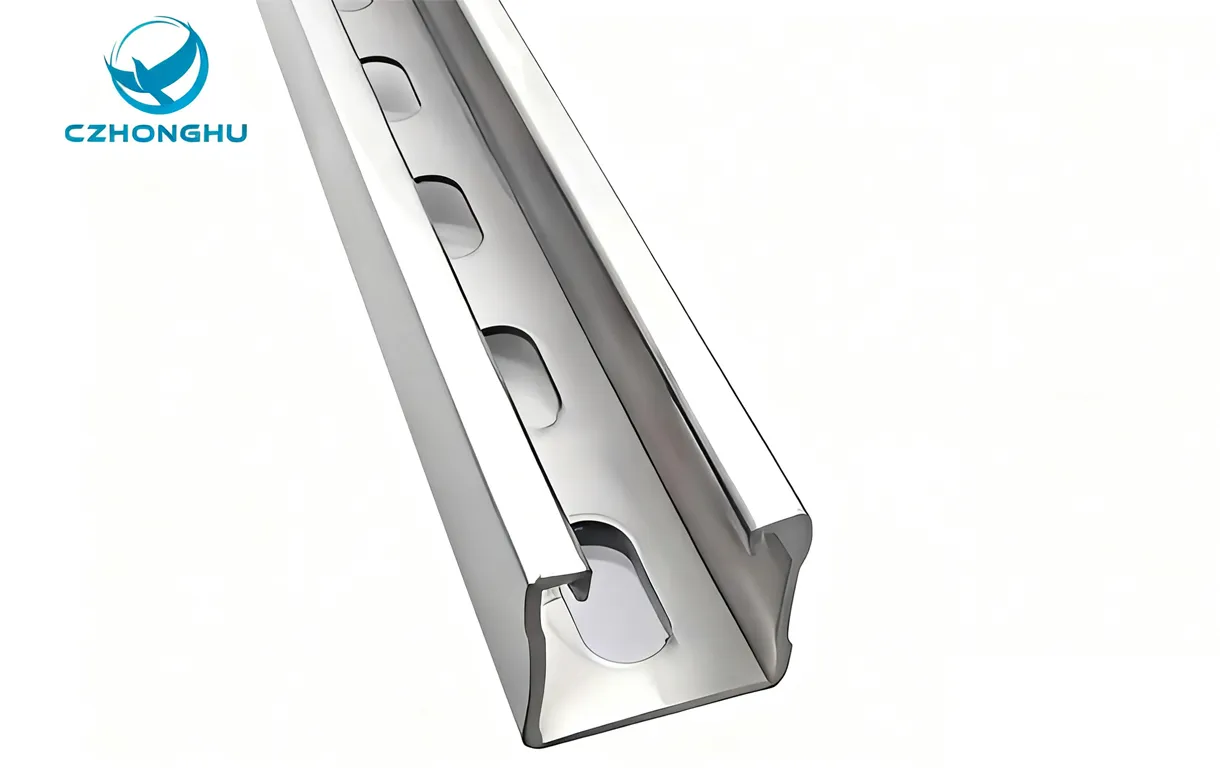

Stainless steel strut channel is a U-shaped or C-shaped metal framing component made of stainless steel, featuring pre-punched holes for easy assembly with bolts, nuts, or brackets. It is corrosion-resistant, durable, and adaptable to various environments.
Its primary function is to form a rigid, modular support system for mounting and bracing electrical conduits, mechanical pipes, HVAC ducts, and cable trays, primarily in commercial and industrial settings. The key advantage of a stainless steel strut channel is its exceptional corrosion resistance, making it ideal for harsh environments like food processing plants, chemical facilities, and outdoor applications. Components like nuts, beam clamps, and angles attach to the channel’s holes, allowing for versatile, adjustable, and strong assembly without requiring welding.
| Item | P/N | Length | Size WXH | Hole Spacing Center to Center | Hole diameter | Thickness | Material | Finishes Option | Weight | Standard Pack |
| Slotted Strut channel | HHUC41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 2.9KG | 50pc/bundle |
| HHUC41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.2KG | 50pc/bundle | |||||
| HHUC41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 5.9KG | 50pc/bundle | |||||
| HHUC41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.4KG | 50pc/bundle | |||||
| HHUC41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 5.9KG | 50pc/bundle | |
| HHUC41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 8.8KG | 50pc/bundle | |||||
| HHUC41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 11.8KG | 50pc/bundle | |||||
| HHUC41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 14.7KG | 50pc/bundle | |||||
| Solid Strut Channel | HHUCP41310 | 3.05m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 3.1KG | 50pc/bundle |
| HHUCP41315 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 4.7KG | 50pc/bundle | |||||
| HHUCP41320 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 6.3KG | 50pc/bundle | |||||
| HHUCP41325 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 7.9KG | 50pc/bundle | |||||
| HHUCP41610 | 6.09m | 1-5/8" X 1-5/8" 41mm X 41mm | 2"/50.8mm | 14mmX28mm | 1.0 mm | ASTM A570/Q235 Stainless Steel | Pregalvanized Hot Dip Galvanized Powder coat | 6.3KG | 50pc/bundle | |
| HHUCP41615 | 2"/50.8mm | 14mmX28mm | 1.5 mm | 9.5KG | 50pc/bundle | |||||
| HHUCP41620 | 2"/50.8mm | 14mmX28mm | 2.0 mm | 12.7KG | 50pc/bundle | |||||
| HHUCP41625 | 2"/50.8mm | 14mmX28mm | 2.5 mm | 15.9KG | 50pc/bundle |
A stainless steel strut channel is defined by its corrosion resistance, material strength, and versatile slotted or solid profile design for industrial use.
Its key advantage is exceptional longevity in harsh environments like marine or chemical plants, drastically reducing long-term maintenance and replacement costs.
The material offers superior load-bearing capacity, enabling more efficient structural designs with longer spans and requiring fewer support points during installation.
A significant benefit is its hygienic, non-porous surface, which is easily sterilized to meet strict standards in food and pharmaceutical industries.
Proven case studies in coastal and industrial settings demonstrate its reliable performance and structural integrity over decades of demanding service.
Despite a higher initial cost, it is the most economical long-term choice for critical applications due to minimal upkeep and extended service life.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
