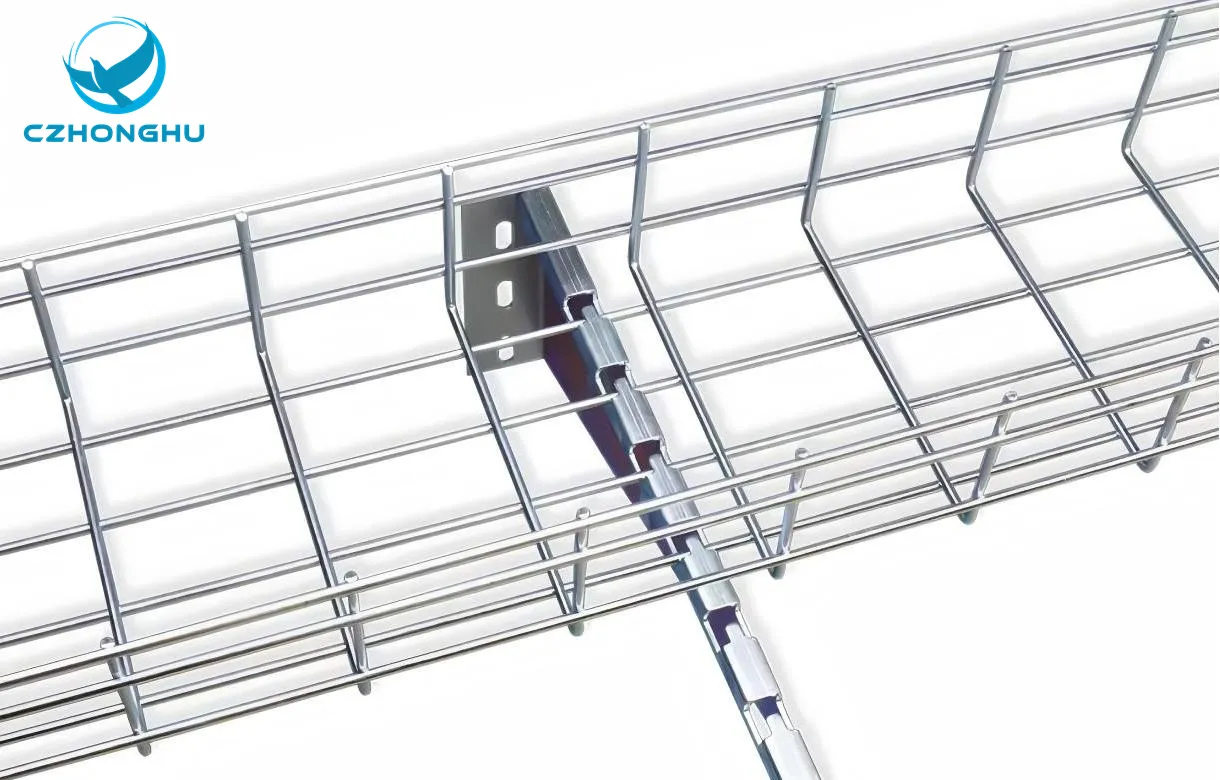

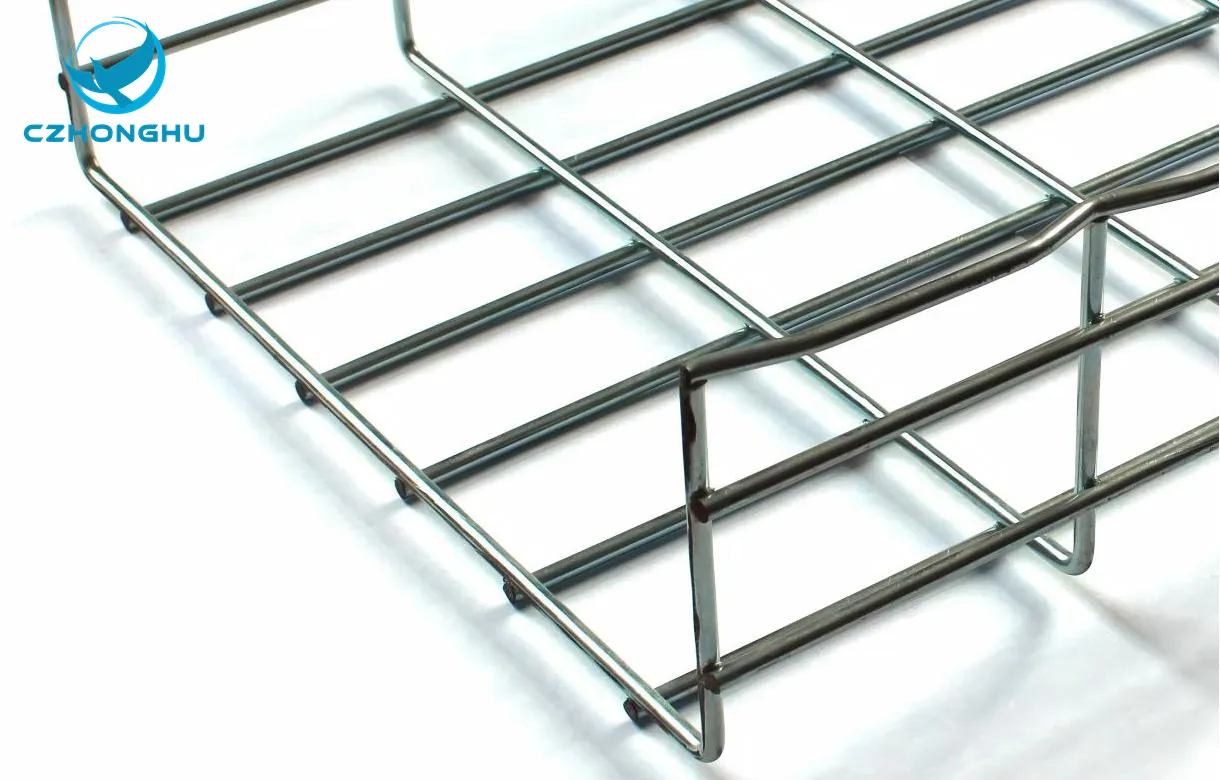

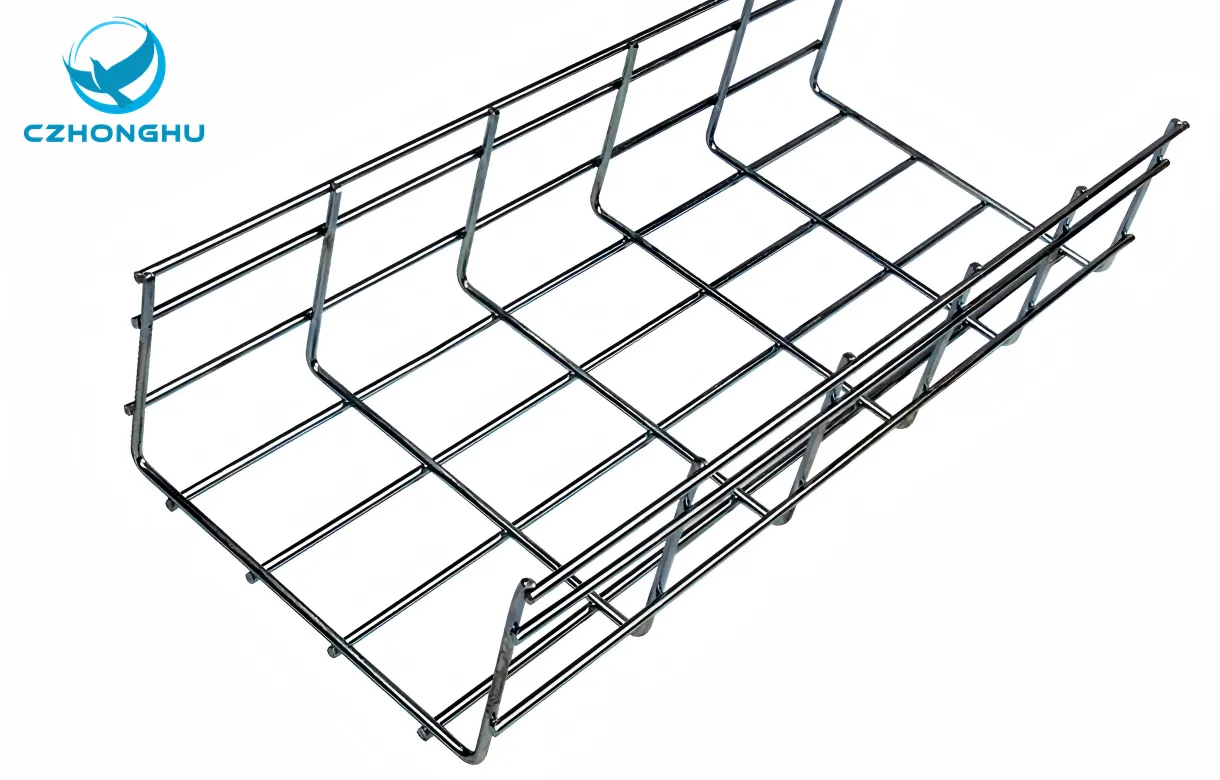

Wire mesh cable tray is a type of cable management system constructed from stainless steel or steel wires that are welded together to form a robust, open, grid-like basket structure. It is characterized by its flexibility, lightweight nature, and excellent ventilation.
wire mesh cable tray primarily functions to support and organize low-voltage cables like data, fiber optics, and power in commercial settings. Its open mesh design maximizes airflow for heat dissipation, prevents overheating, and allows easy cable access and modifications.
| wire mesh cable tray/ basket cable tray | P/N | Height | Width | Wire Diameter | Length | Surface | |
| CM50×50 | 60 | 60 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | 0.49KG/m | |
| CM50×100 | 60 | 100 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | 0.71KG/m | |
| CM50×150 | 60 | 150 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | 0.76KG/m | |
| CM50×200 | 60 | 200 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | 0.90KG/m | |
| CM50×300 | 60 | 300 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | 1.17KG/m | |
| CM50×400 | 60 | 400 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | 1.44KG/m | |
| CM50×500 | 60 | 500 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | 1.71KG/m | |
| CM50×600 | 60 | 600 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | 1.98KG/m | |
| CM100×100 | 100 | 100 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | ||
| CM100×150 | 100 | 150 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | ||
| CM100×200 | 100 | 200 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | ||
| CM100×300 | 100 | 300 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | ||
| CM100×400 | 100 | 400 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | ||
| CM100×450 | 100 | 450 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | ||
| CM100×500 | 100 | 500 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated | ||
| CM100×600 | 100 | 600 | 4.0/5.0 | 2000/2500/3000 | GI/HDG/PC/SST/CS/Passivated |
Superior Ventilation and Heat Dissipation: The open-mesh design of Wire Mesh Cable Trays maximizes airflow around cables to prevent heat buildup. It avoids performance degradation and extends service life for high-performance cables like Cat6/6a/7.
High Flexibility and Adaptability: Wire Mesh Cable Trays can be cut to length, notched to avoid obstacles on-site, and redirected with elbows, tees, etc., suiting complex routing around pipes and equipment.
Visibility and Maintainability: The open design of Wire Mesh Cable Trays enables clear cable visibility for easy identification. Cables can be added, removed or rerouted without disassembling the system, fitting IT/data center needs.
Material Cost Savings: Since Wire Mesh Cable Trays are not "in conduit" and have good heat dissipation, they allow using smaller, cheaper Riser/Plenum-rated cables, no need for expensive large cables for current capacity.
Corrosion Resistance (Material-Dependent): Stainless steel Wire Mesh Cable Trays resist corrosion, moisture and chemicals for harsh environments; PVC/nylon-coated carbon steel ones suit indoor low-corrosion settings.
Effective EMI Shielding: Though the open design of Wire Mesh Cable Trays is prone to EMI, solid steel covers or copper bonding strips can be added to provide grounding and shielding for sensitive cables.
