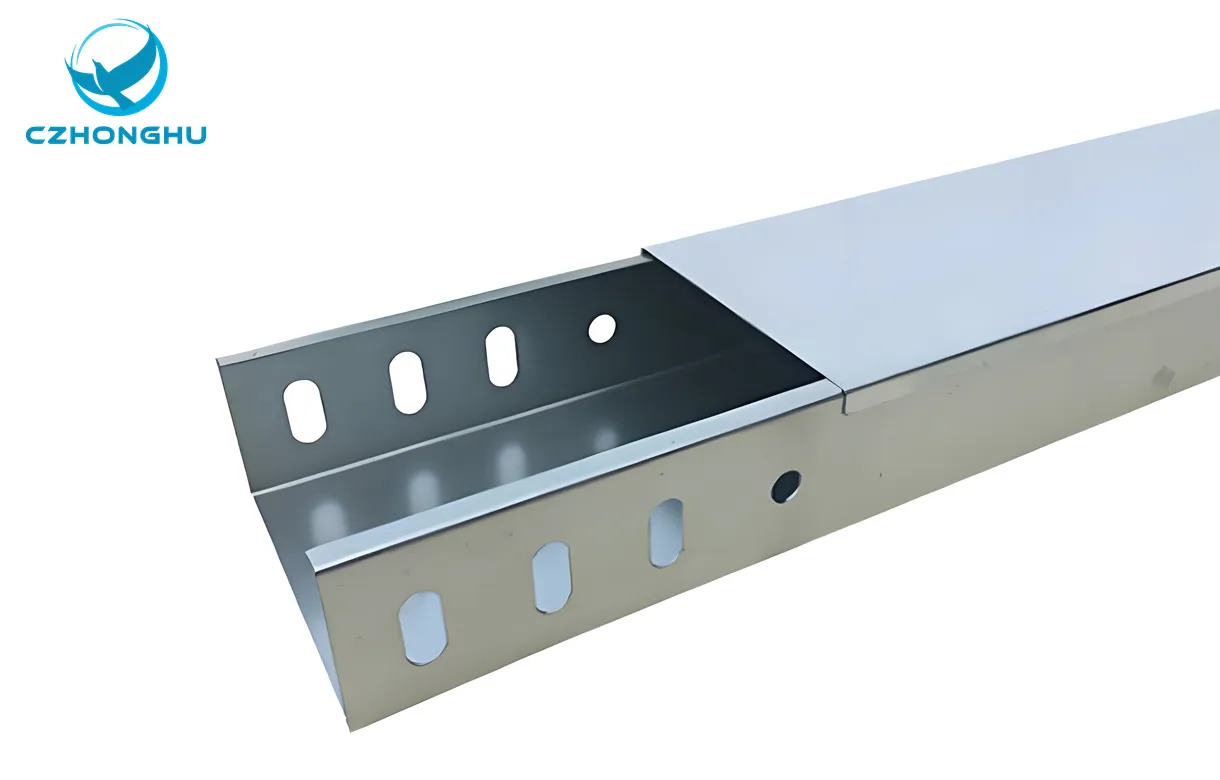

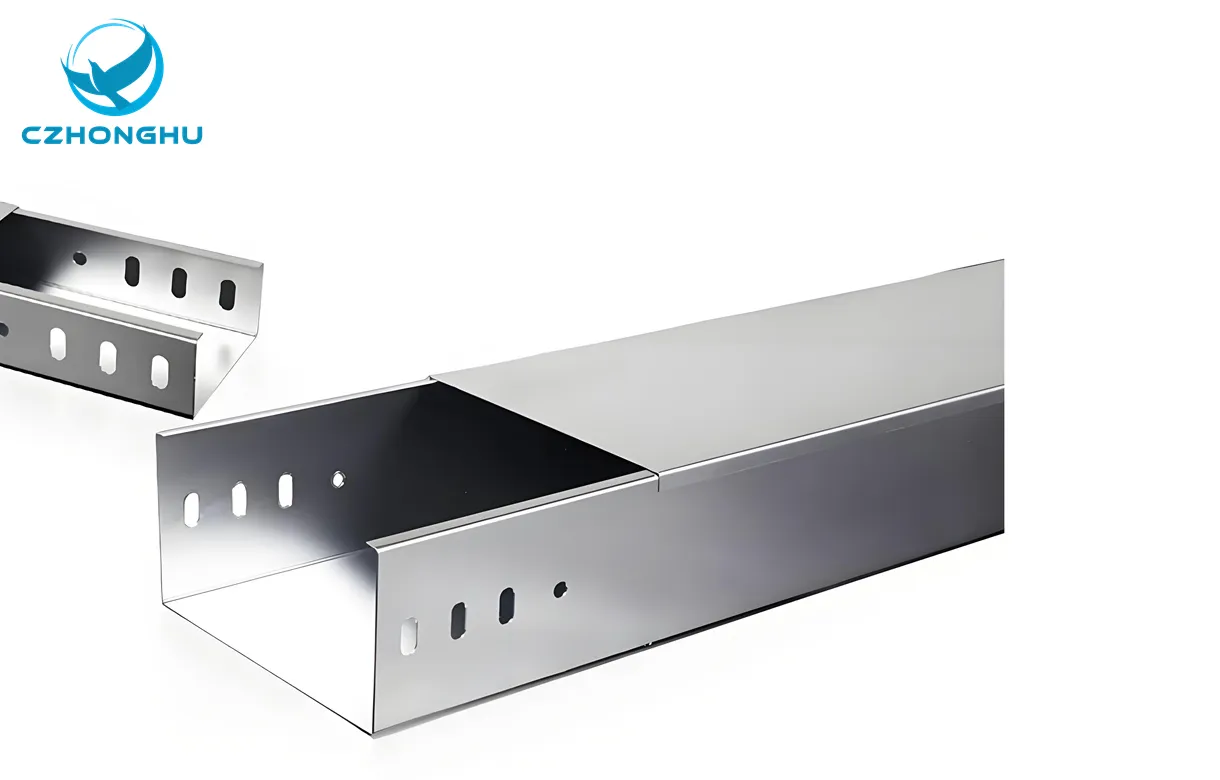

Galvanized (GI) Cable Tray refers to a metal support structure—typically made of steel—coated with a layer of zinc via the hot-dip galvanization process. This zinc coating forms a protective barrier, preventing the underlying steel from rust and corrosion, making it suitable for both indoor and outdoor (e.g., damp, dusty) environments. It usually has a trough-like, ladder, or solid-bottom design to hold and organize electrical cables (power, control, or communication cables).
Its primary function is to securely organize, support, and route electrical cables and wiring systems within commercial, industrial, and utility installations. By providing a structured and accessible pathway, it ensures safety, simplifies maintenance, and allows for future system expansions. GI cable trays are prized for their mechanical strength, durability, longevity, and cost-effectiveness, offering a reliable solution for managing power, data, and communication cables in demanding environments.
| Type | P/N | Height | Width | Thickness | Length | surface |
| Perforated Cable Tray/Solid Cable Tray | HHCTP450 | 40 | 50 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL |
| HHCTP4100 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP4600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP550 | 50 | 50 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | |
| HHCTP5100 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP5600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6100 | 60 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | |
| HHCTP6150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP6600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7100 | 75 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | |
| HHCTP7150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP7600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP1010 | 100 | 100 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | |
| HHCTP10150 | 150 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10200 | 200 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10250 | 250 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10300 | 300 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10400 | 400 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10500 | 500 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL | ||
| HHCTP10600 | 600 | 0.7/0.8/1.0/1.2/1.5/2.0 | 2000/2500/2900 | GI/HDP/PC/Paint/SST/AL |
Galvanized (GI) Cable Tray stands out with corrosion resistance as its core feature: the hot-dip zinc coating forms a dense, adherent layer on steel, blocking moisture, chemicals, and oxidation—critical for outdoor, damp, or industrial settings where uncoated trays rust easily.
Galvanized (GI) Cable Tray boasts strong durability. The zinc-steel combination resists physical impacts and temperature fluctuations (from -40°C to 120°C), ensuring a long service life (usually 15–20 years) with minimal wear, reducing replacement costs.
Its versatility is another key feature: Galvanized (GI) Cable Tray comes in trough, ladder, or solid-bottom designs, fitting different cable types (power, communication, control) and installation scenarios (ceilings, walls, floors). Modular components also enable easy cutting, splicing, and expansion.
It offers cost-effectiveness. Though initial investment is slightly higher than ungalvanized trays, its low maintenance needs (no frequent repainting) and long lifespan make Galvanized (GI) Cable Tray a economical choice for long-term projects.
