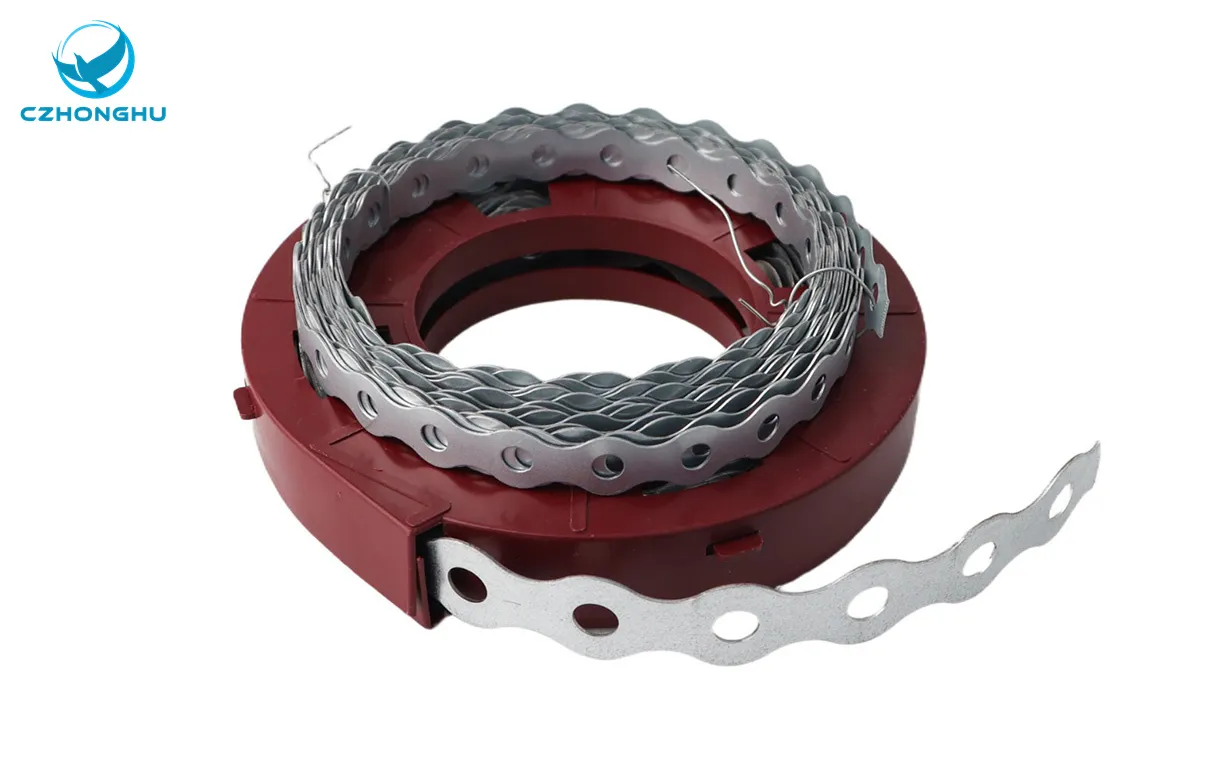

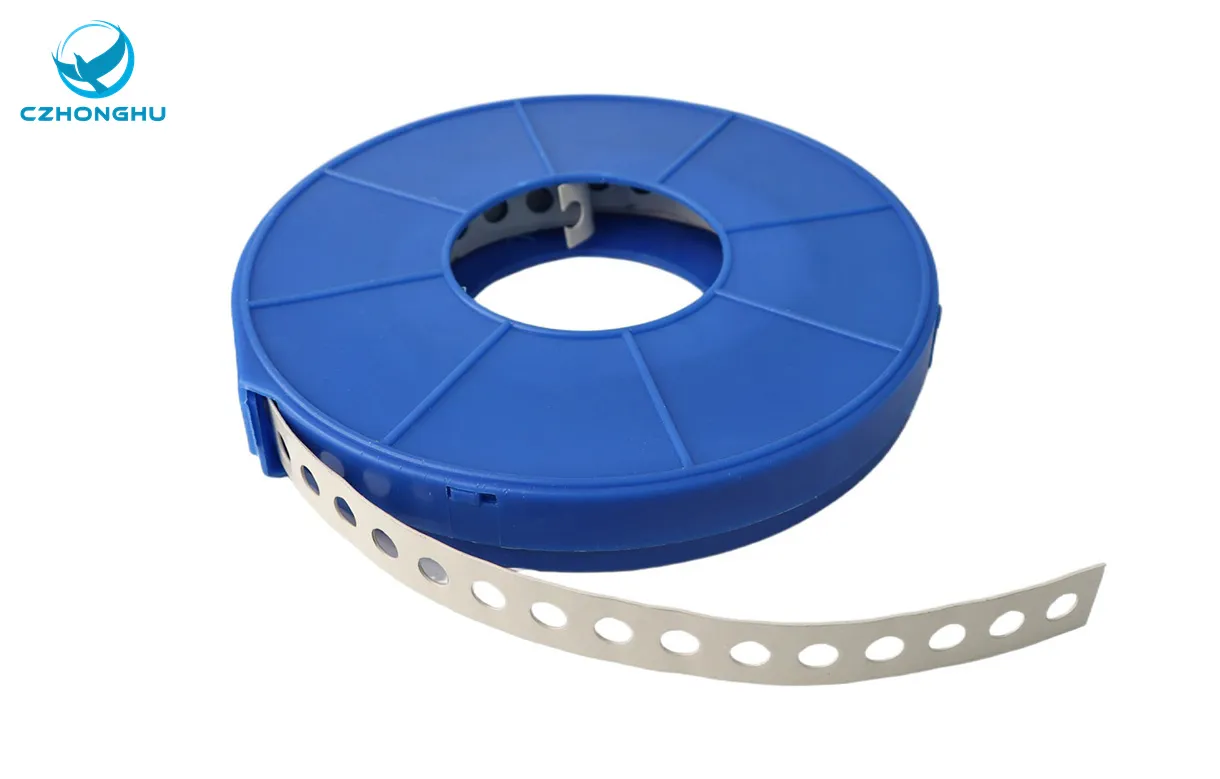

Perforated steel band, also known as a perforated band or wavy perforated band, is a flat, thin steel strip featuring uniformly punched holes created through stamping. This structure retains steel strength while improving airflow and flexibility. These perforated metal bands/strips offer enhanced corrosion resistance for demanding environments.
Valued for breathability, adjustability, and cost efficiency, these stainless steel perforated bands/strips have become essential across many critical industries. With customizable hole patterns, sizes, finishes, and accessories, our perforated steel bands/strips easily adapt to tasks ranging from securing rebar to bundling crops.
| Master data | ||||||
| Type | 12x0,75 | 14x0,75 | 17x0,75 | 19x0,75 | 25x0,75 | 27x0,75 |
| Description 2 | Galvanized/Pre-Galvanized | plastic covered | Galvanized/Pre-Galvanized | plastic covered | Galvanized/Pre-Galvanized | plastic covered |
| Dimension | 12x0,75mm, 10m | 14x0,75mm, 10m | 17x0,75mm, 10m | 19x0,75mm, 10m | 25x0,75mm, 10m | 27x0,75mm, 10m |
| Colour | Silver | Black | Silver | Black | Silver | Black |
| Material | Steel/Stainless steel | Steel/Stainless steel | Steel/Stainless steel | Steel/Stainless steel | Steel/Stainless steel | Steel/Stainless steel |
| Surface/Surface standard | Strip galvanized/DIN EN 10346 | plastic coated/DIN EN 10346 | Strip galvanized/DIN EN 10346 | plastic coated/DIN EN 10346 | Strip galvanized/DIN EN 10346 | plastic coated/DIN EN 10346 |
| PU1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Unit of quantity | Piece | Piece | Piece | Piece | Piece | Piece |
| Weight unit | kg/100 pc. | kg/100 pc. | kg/100 pc. | kg/100 pc. | kg/100 pc. | kg/100 pc. |
| Dimensions | ||||||
| Length | 10 m | 10 m | 10 m | 10 m | 10 m | 10 m |
| Width | 12 mm | 14 mm | 12 mm | 19 mm | 12 mm | 27 mm |
| Thickness | 0.75mm | 3 mm | 0.75mm | 3 mm | 0.75mm | 3 mm |
| Technical data | ||||||
| Breaking load | 1900 kN | 1900 kN | 3500 kN | 3500 kN | 3467 kN | 3467 kN |
| Hole diameter | 5.2 mm | 5.2 mm | 6.5 mm | 6.5 mm | 8.5 mm | 8.5 mm |
| With perforation | yes | yes | yes | yes | yes | yes |
| Perforation | Round | Round | Round | Round | Round | Round |
| Type of band | Straight | Straight | Straight | Straight | Straight | Straight |
| In the holder | no | no | no | no | no | no |
Perforated steel band/strip features uniform hole patterns for precise airflow, drainage, and filtration, making it ideal for functional and technical applications.
Lightweight yet durable, the perforated metal band/strip reduces material consumption and shipping costs while maintaining structural strength.
For demanding conditions, the stainless steel perforated strip offers excellent corrosion resistance, significantly extending service life in harsh environments.
Easy to cut and install, perforated steel bands/strips help reduce labor time and tooling expenses during on-site assembly.
Highly versatile, the perforated metal band/strip adapts seamlessly to architectural, automotive, and industrial applications.
Fully recyclable, the steel strip with holes supports sustainability and lower environmental impact across the entire product lifecycle.
Filtration and separation
In automotive air filters, the perforated steel band/strip allows air to pass through while supporting the filter media. In industrial sieves, perforated metal bands/strips separate granular materials such as ores or grains by hole size, ensuring accurate and efficient sorting.
Ventilation and cooling
Used in HVAC grilles and electronic device enclosures, the perforated steel band/strip promotes airflow and heat dissipation, helping protect equipment from overheating without compromising structural strength. Perforated metal bands/strips provide durability in long-term use.
Packaging and fastening
During shipping, the perforated steel band/strip is used to secure heavy loads such as wooden crates and metal components. The holes in the perforated metal band/strip allow bolts or straps to pass through, creating a tighter and more stable hold than conventional steel bands.
Decorative and architectural applications
Widely applied in facade panels or interior screens, the perforated steel band/strip provides a modern appearance while controlling light, airflow, and privacy. For harsh or corrosive environments, a stainless steel perforated strip is often selected.
Please complete the form. Our experts will contact you to provide a tailored solution and technical specifications for your project needs.
